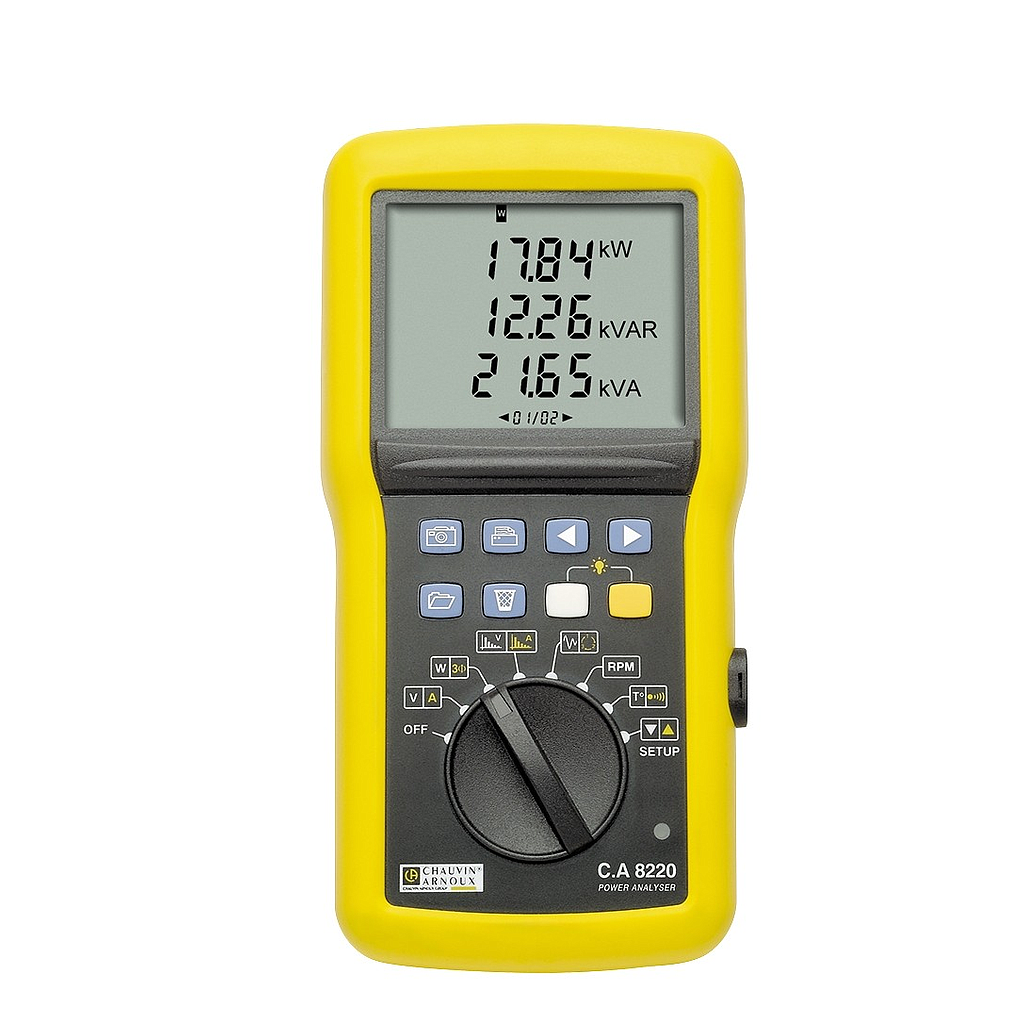

Chauvin Arnoux C.A 8220 SINGLE PHASE POWER ANALYSER

- Voltage range: 6 Vrms to 600 Vrms AC+DC ±(0.5 % +2 counts)
- AC current range: 100 mA to 6,500 A ±(0.5 % +1 count)
- DC current range: 100 mA to 1,700 A ±(1 % +1 count)
- Min, Max, Avg, and Peak values (+ and -), CF: Yes
- Fundamental frequency: 40 Hz to 70 Hz
- Screen: 173-segment backlit LCD
- Single-phase and balanced three-phase: Yes
- W, VA and var power values, DF, THD, Cos φ: Yes
- varh and VAh energy values, Wh: Yes
- Harmonics: Up to 50th order
- Motor rotation speed: 6 RPM to 120 kRPM ±(0.5 %)
- Temperature (Pt100): -200 °C to +850 °C ±(1 % +10 counts)
- Resistance (winding): 0.0 Ω to 2,000 Ω ±(0.5 % +2 Ω)
- Phase rotation: Yes, with display of phase order in three-phase systems
- Storage of measurements: Yes
- Ambient temperature: 23 °C ±3 K
- Relative humidity: 45 % ; 75 %
- Protection rating: IP54
- RS232/USB port: Yes
- IEC 61010-1: 600 V, Cat. III
- Power supply: Batteries 6x AA
- Dimensions: 211 x 108 x 60 mm /840 g (with rechargeable batteries)


State of Delivery: 6 fitted AA batteries, 1 red banana lead (straight-straight), 1 black banana lead (straight-straight), 2 x 4 mm test probes (1 red, 1 black), 2 crocodile clamps (1 red, 1 black), 1 optical USB cable and Power Analyzer Transfer software.
Accessories available as optional extras
- 4 mm red and black test probes P01295454Z
- Red and black crocodile clips P01295457Z
- 4 mm red and black banana/banana leads P01295451Z
- MN93A BK clamp P01120434
- MN93 BK clamp P01120425
- AmpFlex A193 450 mm BK P01120526
- AmpFlex A193 800 mm BK P01120531
- PAC93 BK clamp P01120079
- C193 BK clamp P01120323
- Mains adapter P01160640
- E3N clamp P01120043A
- C.A 8220 / E3N adapter P01102081
- RPM sensor P01102082
- Optical/USB cable HX0056-Z
- DataVIEW processing software P01102095
- Carrying bag No 5 P01298049
