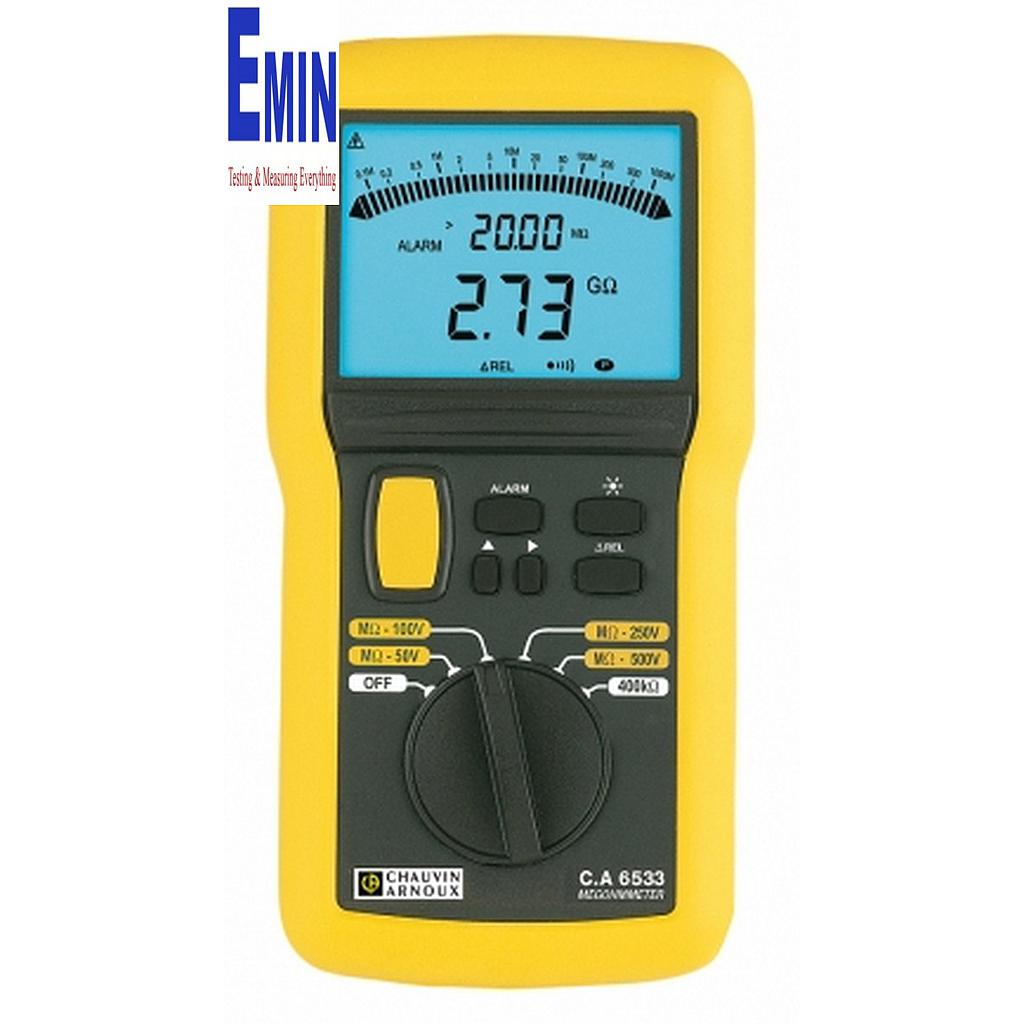

Chauvin Arnoux C.A 6533 Testing of telecom installations and "low-current" equipment (500V, 20GΩ)

Insulation
- Test voltage : 50V ( 10 kΩ - 2 GΩ)/ 100 V (20 kΩ - 2GΩ)/ 250V ( 50 kΩ - 20 GΩ)/ 500V ( 100 kΩ - 20 GΩ)
- Accuracy (200 kΩ to 2 GΩ): ± 3 % of value ± 2 cts
- Voltage test / Safety: 0 to 600 VAC/DC
- Voltage alert indicator: Yes > 25 V
- Test inhibition: Yes > 25 V
Resistance
- Range: 0 to 400 k Ω
Other features
- Alarms: yes
- Display: LCD + Bargraph, Backlighting
- Dimensions: 211 x 108 x 60 mm
- Weight: 830 g
- Power supply: 6 x 1.5 AA batteries
- Electrical safety: EC 61010 600 V CAT III


State at delivery: Delivered with a "hands-free" bag containing a set of 2 leads 1.5 m long, 1 guarded safety lead 1.5 m long,1 crocodile clip, 2 wire grips, 1 black test probe, 6 x 1.5 V AA batteries and 1 operating manual.

Optional compatible accessories
-Remote control probe P01101935
-C.A 846 thermo-hygrometer P01156301Z
-C.A 861 thermometer + K thermocouple P01650101Z
-Carrying bag / "hands-free" use P01298049
-Set of 5 x 0.63A fuses P01297078
-1.5 V AA alkaline battery P01296033
-Test probes (red + black) P01102051Z
-Crocodile clips (red + black) P01102052Z
-Elbowed-straight safety leads (red + black) 1.5 m long P01295283Z
