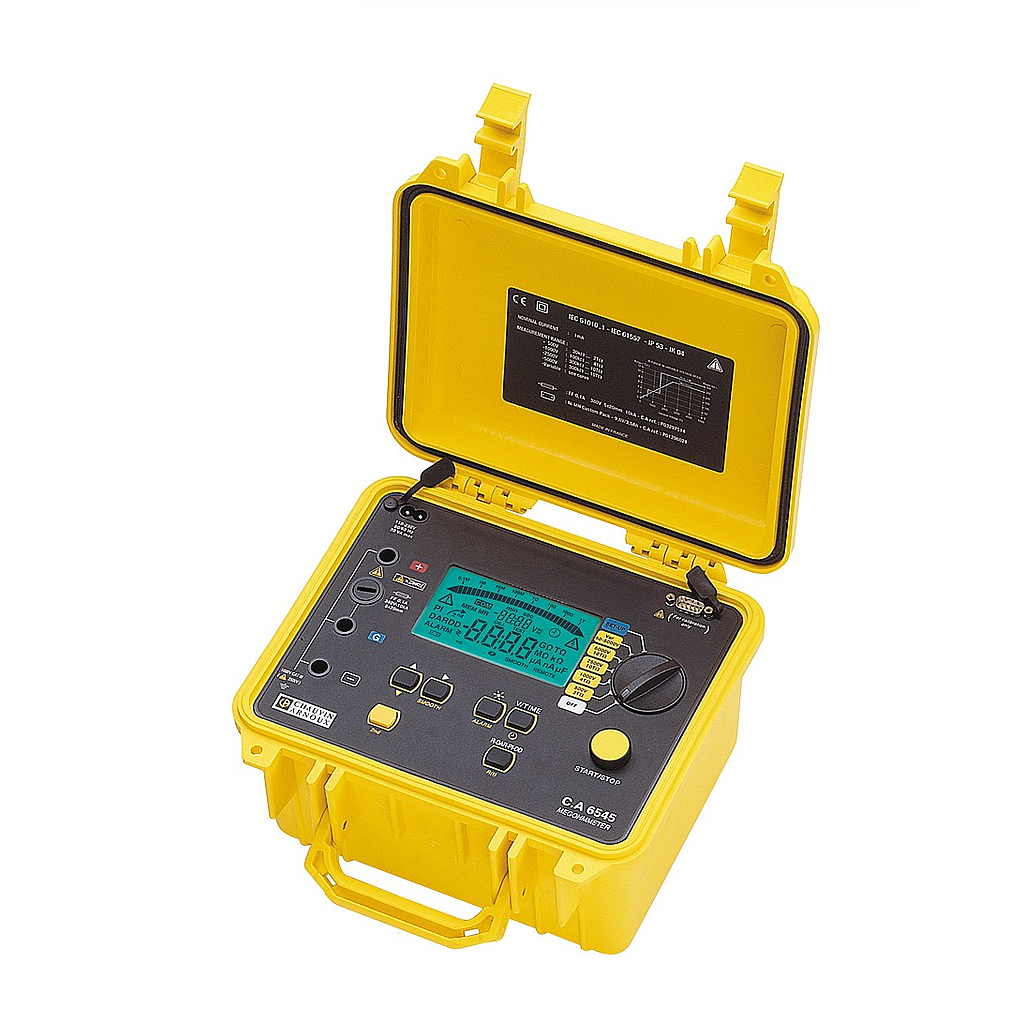

Chauvin Arnoux C.A 6545 Insulation tester (5000V, 10 TΩ)

INSULATION

Fixed test voltages: 500 / 1,000 / 2,500 / 5,000 V

Adjustable test voltage: 40 V to 5,100 V in 10 or 100 V increments

Ranges:

500 V: 10 kΩ to 2 TΩ

1,000 V: 10 kΩ to 4 TΩ

2,500 V: 10 kΩ to 10 TΩ

5,000 V: 10 kΩ to 10 TΩ

VOLTAGE: 1 to 5,100 V (15 Hz to 500 Hz or DC)

CAPACITANCE: 0.001 to 49.99 F

LEAKAGE CURRENT: 0.000 nA to 3,000 A

Functions:

Display Large graphical LCD

Backlighting: YES

Programmable alarms: YES

Smoothing of display: YES

Prog. test duration: YES

Calculation of ratios: DAR - PI and DD

Step voltage mode: NO

Calc. of R at reference T°: NO

Locking of test voltage: YES

R(t): Recording of samples

Power supply: Rechargeable NiMH battery

Battery life: 30 days with 10 DARs and 5 PIs / day

Electrical safety: IEC 61010-1 (Cat. III 1,000 V or Cat. I 2,500 V) and 61557

Dimensions: 270 x 250 x 180 mm

Weight: 4.3 kg

Delivered with a carrying bag containing:

• 2 HV safety leads, one red and one blue, length 3 m, equipped with an HV plug at one end and an HV crocodile clip at the other end.

• 1 black guarded HV safety lead, length 3 m, equipped with an HV plug with rear connection at one end and an HV crocodile clip at the other end.

• 1 blue guarded HV safety lead, length 0.35 m, equipped with an HV plug at one end and an HV plug with rear connection at the other end.

• mains power cable 1.80 m long

• 8 simplified user’s manuals (CA 6547)

• 1 USB drive containing the user’s manuals (1 file per language)
