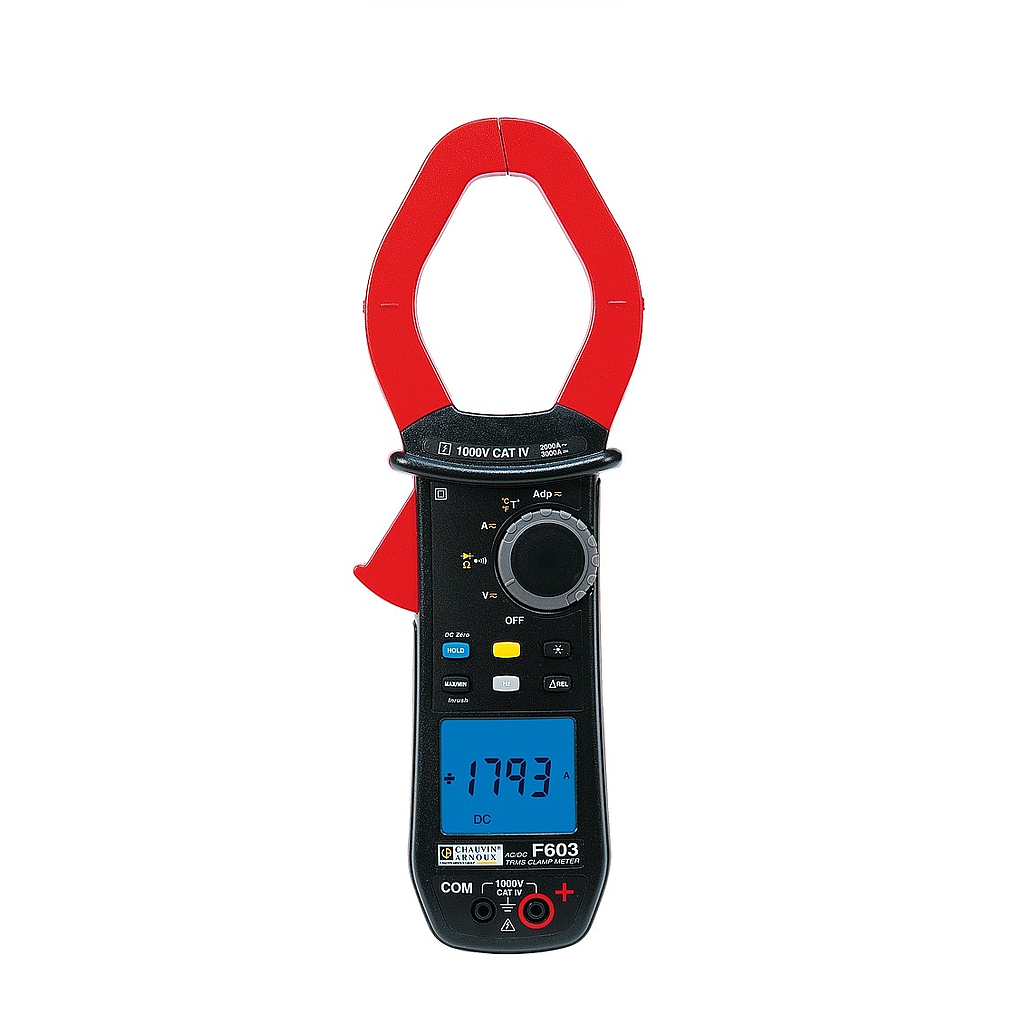

Chauvin Arnoux F603 Clamp meter (AC 3000A)

Specifications
- Clamping diameter : Ø 60 mm
- Display: Backlit LCD
- Resolution: 10 000 counts
- Number of values displayed : 1
- Type of acquisition: TRMS [AC] /DC
- Autorange function: yes
- Automatic AC/DC detection: yes
- Aac: 2,000 A (3,000 A peak)
- Adc: 3000 A peak
- Best accuracy: 1% R + 3 counts
- Vac: 1000 V
- Vdc: 1400 V
- Frequency of V / I : Yes / -
- Resistance: 100 kΩ
- Audible continuity: Adjustable from 1 Ω to 999 Ω
- Diode test (semi-conductor junction): yes
- Adapter: có
- Temperature(K type)°C: -60.0 to +1,000.0 °C
Functions
- Overcurrent measurement: yes
- Motor Inrush: yes
- Load evolution (TrueInrush): yes
- Hold: yes
- Min / MAX: yes
- Peak+ / Peak-: yes
- RELative ΔX: yes
- Differential ΔX / X(%): yes
- Auto Power Off : yes
- Electrical safety according to IEC 61010: 1,000 V CAT IV - 1,000 V CAT III
- Power supply : 4 x 1.5 V AA
- Dimensions / Weight: 111 x 296 x 41 mm / 640 g

State at delivery:
- 1 set of PVC cables (black/red)
Ø 4 mm isolated elbowed male banana plug
Ø 4 mm isolated straight male banana plug
- 2 test probes (black/red): Ø 4 mm isolated female plug
- 1 wire thermocouple with integrated: Ø 4 mm isolated banana connections with ; 19 mm spacing
- 1 x 9 V 6LR61 battery; 4 x 1.5V LR03 batteries for F400/600 clamps
- Multifix bag: 120 x245 x 60 mm for F200 clamps; 120 x320 x 60 mm for F400/600 clamps

Datasheet
