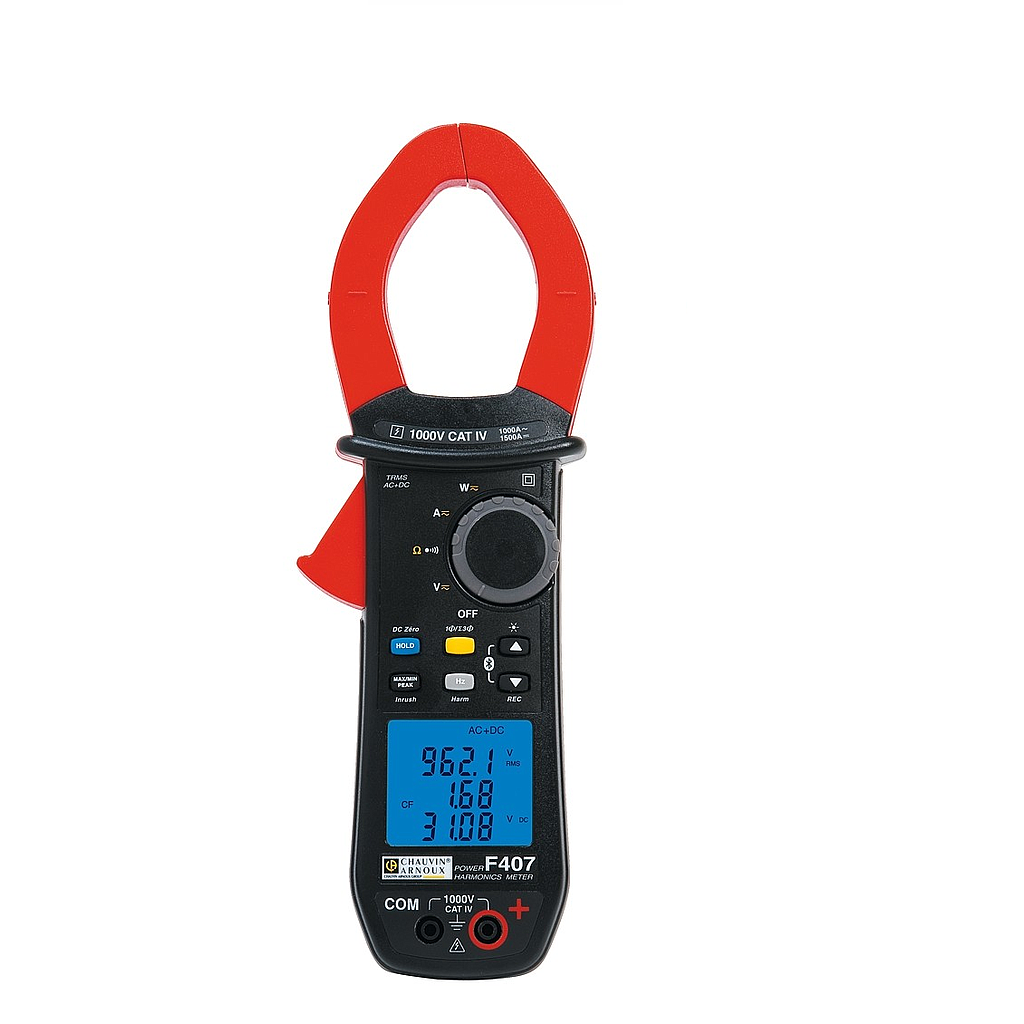

Specifications
- Clamping diameter : Ø 34 mm
- Display: Backlit LCD
- Resolution: 10 000 counts
- Number of values displayed : 3
- Type of acquisition: TRMS [AC, AC+DC] /DC
- Autorange function: yes
- Automatic AC/DC detection: yes
- Aac: 1000 A
- Adc: 1500 A peak
- Aac+dc: 0.15 to 1,000V (1,400 V peak)
- Best accuracy: 1% R + 3 counts
- Vac: 1000 V
- Vdc: 1400 V
- Vac+dc: 1,000 A (1,400 A peak)
- Best accuracy: 1% R + 3 cts
- Frequency of V / I : Yes / -
- Resistance: 100 kΩ
- Audible continuity: Adjustable from 1 Ω to 999 Ω
- Diode test (semi-conductor junction): yes
- Single-phase and total three-phase power values: yes
- Active (W): yes
- Reactive (VAR): yes
- Apparent (VA): yes
- FP / DPF: yes/ yes
- Harmonic analysis THDf/ THDf: yes/yes
- Frequency analysis: 25th order
Functions
- Overcurrent measurement: yes
- Motor Inrush: yes
- Load evolution (TrueInrush): yes
- Hold: yes
- Min / MAX: yes
- Peak+ / Peak-: yes
- Auto Power Off : yes
- Data recording: yes
- Communication interface: Bluetooth
- Electrical safety according to IEC 61010: 1,000 V CAT IV - 1,000 V CAT III
- Power supply : 4 x 1.5 V AA
- Dimensions / Weight: 92 x 272 x 41 mm / 600 g
State at delivery:
- 1 set of PVC cables (black/red)
Ø 4 mm isolated elbowed male banana plug
Ø 4 mm isolated straight male banana plug
- 2 test probes (black/red): Ø 4 mm isolated female plug
- 2 black safety crocodile clip
- 1 x 9 V 6LR61 battery; 4 x 1.5V LR03 batteries for F400/600 clamps
- Multifix bag: 120 x245 x 60 mm for F200 clamps; 120 x320 x 60 mm for F400/600 clamps
