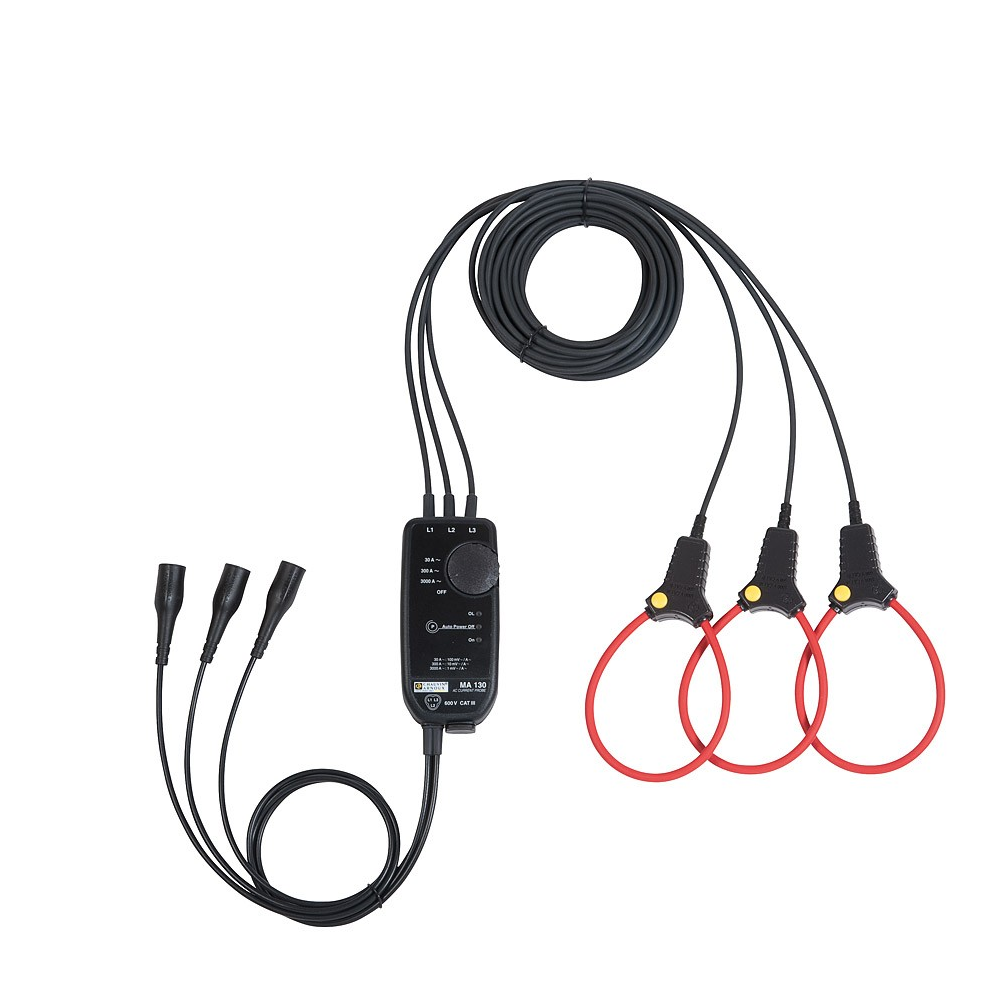

Chauvin Arnoux MA130-250 AmpFlex® flexible probes for AC current

- Input
+ Very low current: 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ Low current: 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ Medium current: 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ High current: 0.5 A .. 30 A; 0.5 A .. 300 A; 0.5 A .. 3,000 A
+ AC: yes
- Output / Connections
+ Voltage: 3 VAC
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 100 mV/A; 10 mV/A; 1 mV/A
+ Power measurement (low phase shift): yes
+ Bandwidth (frequency in Hz): 10 Hz .. 20 kHz; 10 Hz .. 20 kHz; 10 Hz .. 20 kH
+ Typical accuracy: ≤ 1%
