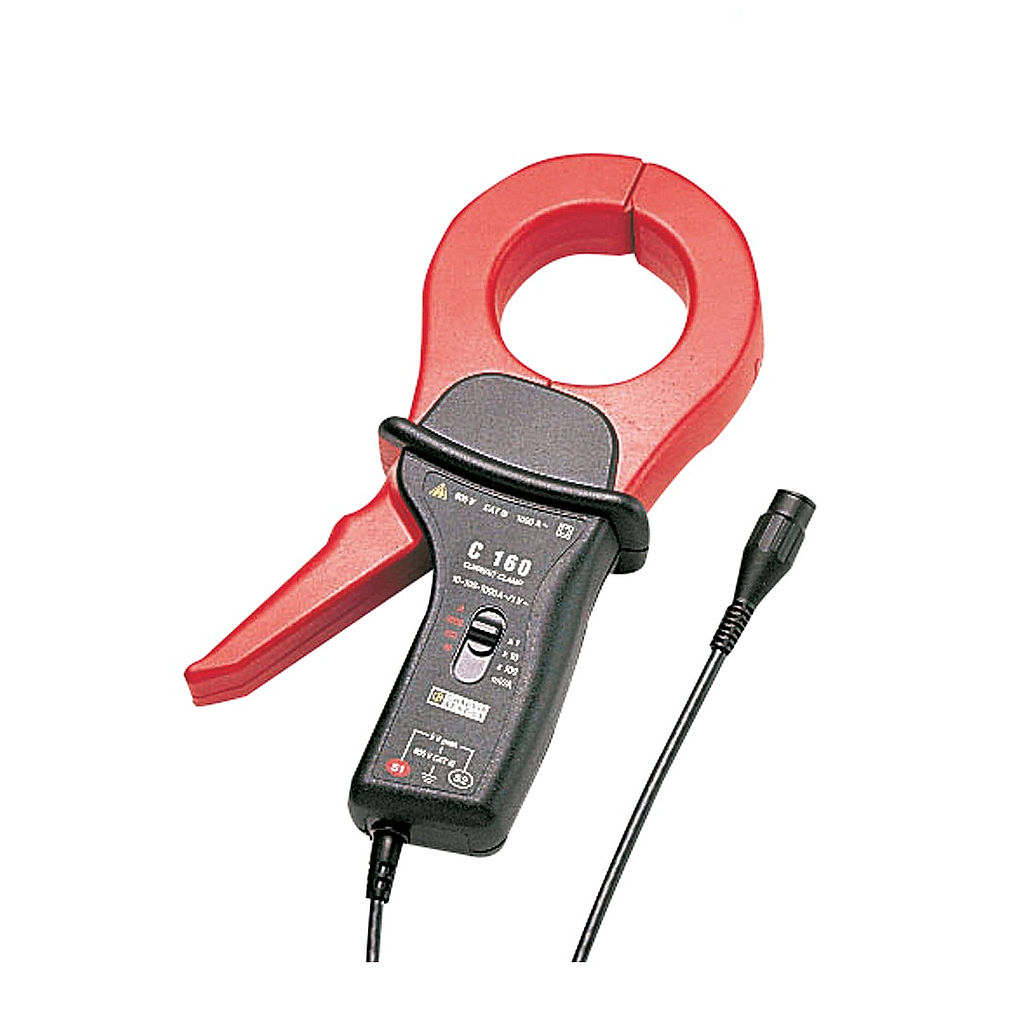

Chauvin Arnoux C160 Clamp meter (2000A)

- Input
+ Low current: 0.1 A - 30 A peak; 1 A - 300 A peak; 1 A to 2.000 A peak
+ Medium current: 0.1 A - 30 A peak; 1 A - 300 A peak; 1 A to 2.000 A peak
+ AC: yes
- Output / Connections
+ Current:
+ Voltage: 3 V peak; 3 V peak; 2 V peak
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 10 A/1 V ; 100 A/1 V ; 1.000 A/1 V
+ Bandwidth (frequency in Hz): 10Hz - 100kHz
+ Typical accuracy: ≤ 3 %; ≤ 2 %; ≤ 1 %
