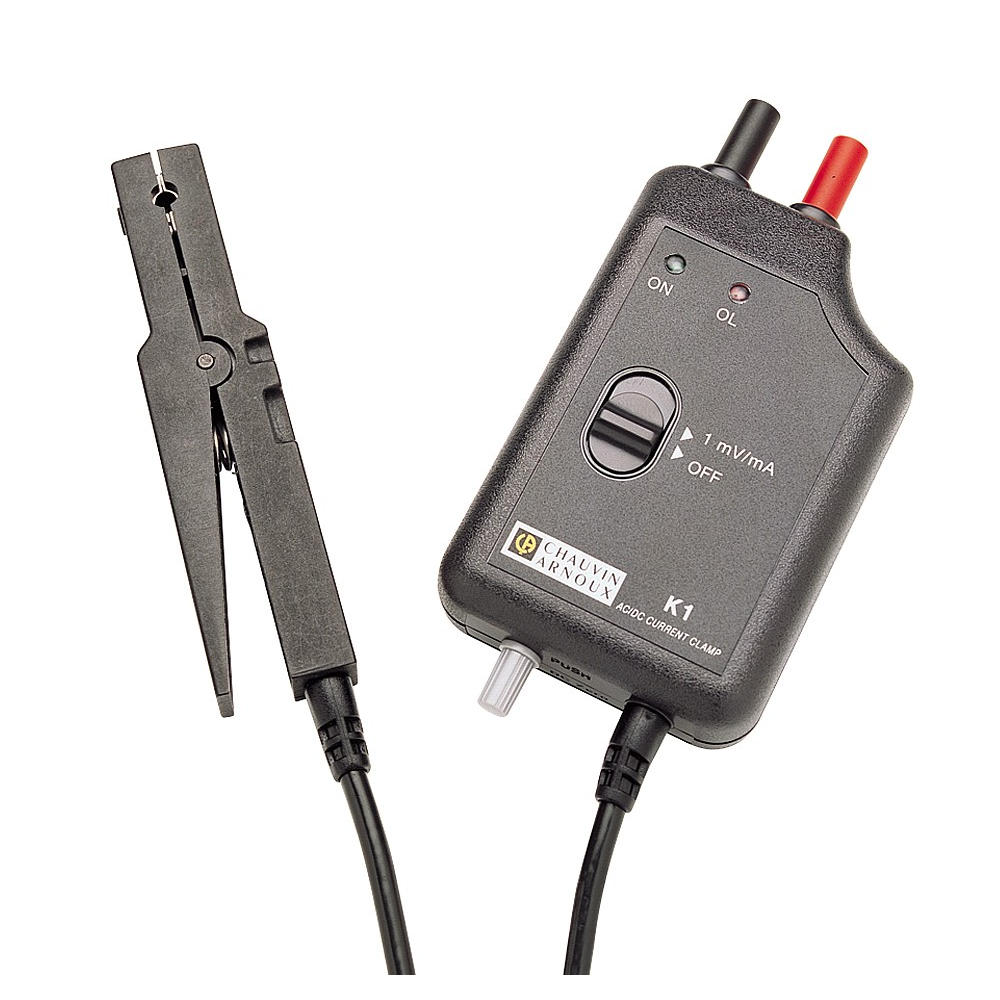

Chauvin Arnoux K1 AC/DC current measurement (4.5A DC, 3A AC)

- Input
+ Very low current: 1 mA - 4.5 A DC; 1 mA - 3 A RMS; 1 mA - 4.5 A peak
+ AC: yes
+ DC : yes
- Output / Connections
+ Current:
+ Voltage: 4.5 V DC; 3 V RMS; 4.5 V peak
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1mA/1mV
+ Bandwidth (frequency in Hz): DC- 2 kHz
+ Typical accuracy: ≤ 1 %

datasheet
user guider
catalog vietnamese
catalog english

Description

The K Series is a range of "micro-clamps" for accurate measurements of very low direct and alternating currents.

Their small size and their shape make them ideal for exploring and measuring in places where access is difficult.

Main features of the K1 model:

• Rated current: 3 A AC / 4.5 A DC
• Output signal: DC and AC current
• Output / input ratio: 1 mV / mA
• Output via isolated Ø4mm male plugs with 19 mm spacing
