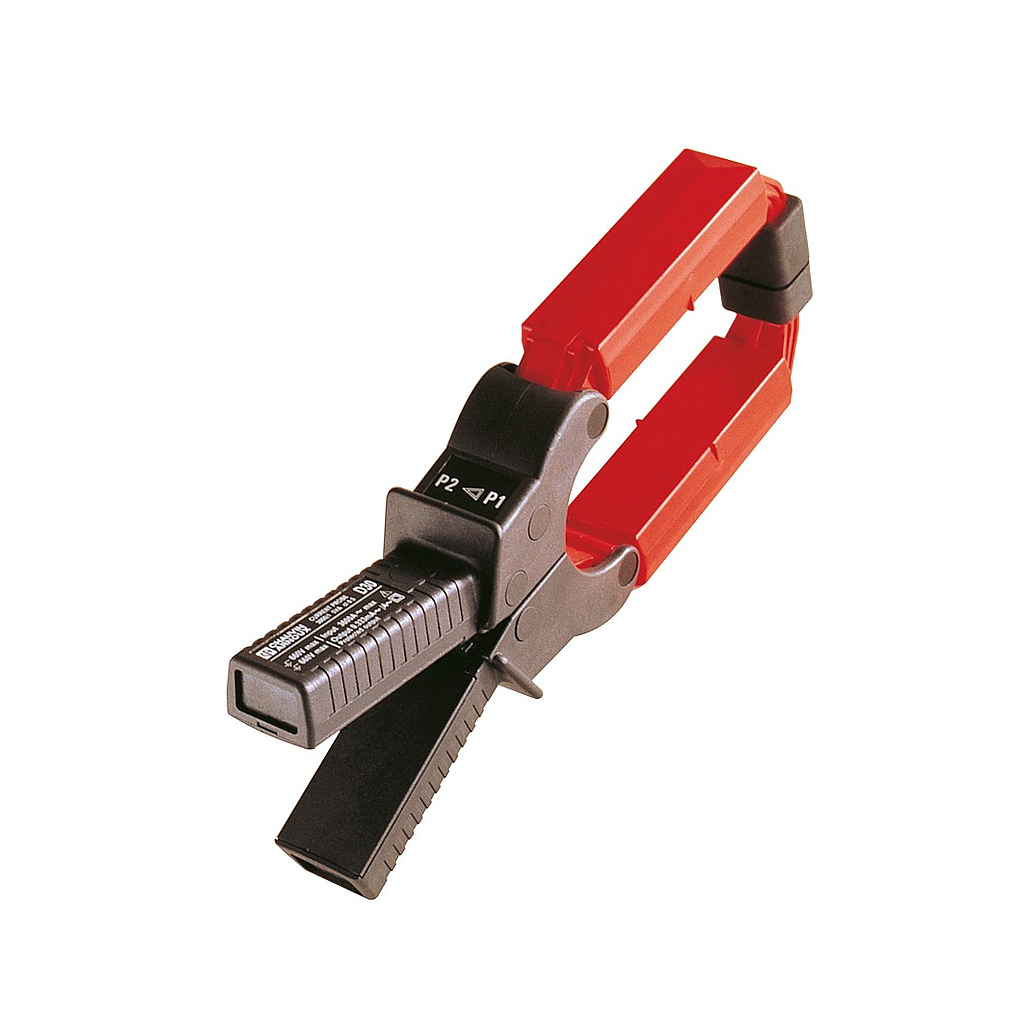

Chauvin Arnoux D38N Clamp meter (AC 9000A)

- Input
+ Low current: 1 A to 90 A peak ; 1 A to 900 A peak ; 1 A to 9,000 A peak
+ Medium current: 1 A to 90 A peak ; 1 A to 900 A peak ; 1 A to 9,000 A peak
+ High current: 1 A to 90 A peak ; 1 A to 900 A peak ; 1 A to 9,000 A peak
+ AC: yes
- Output / Connections
+ Current:
+ Voltage: 0.9 V peak
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 1 A/10 V ; 1 A/1mV ; 1 A/0.1mV
+ Bandwidth (frequency in Hz): 30Hz - 50kHz
+ Typical accuracy: ≤ 2 %
