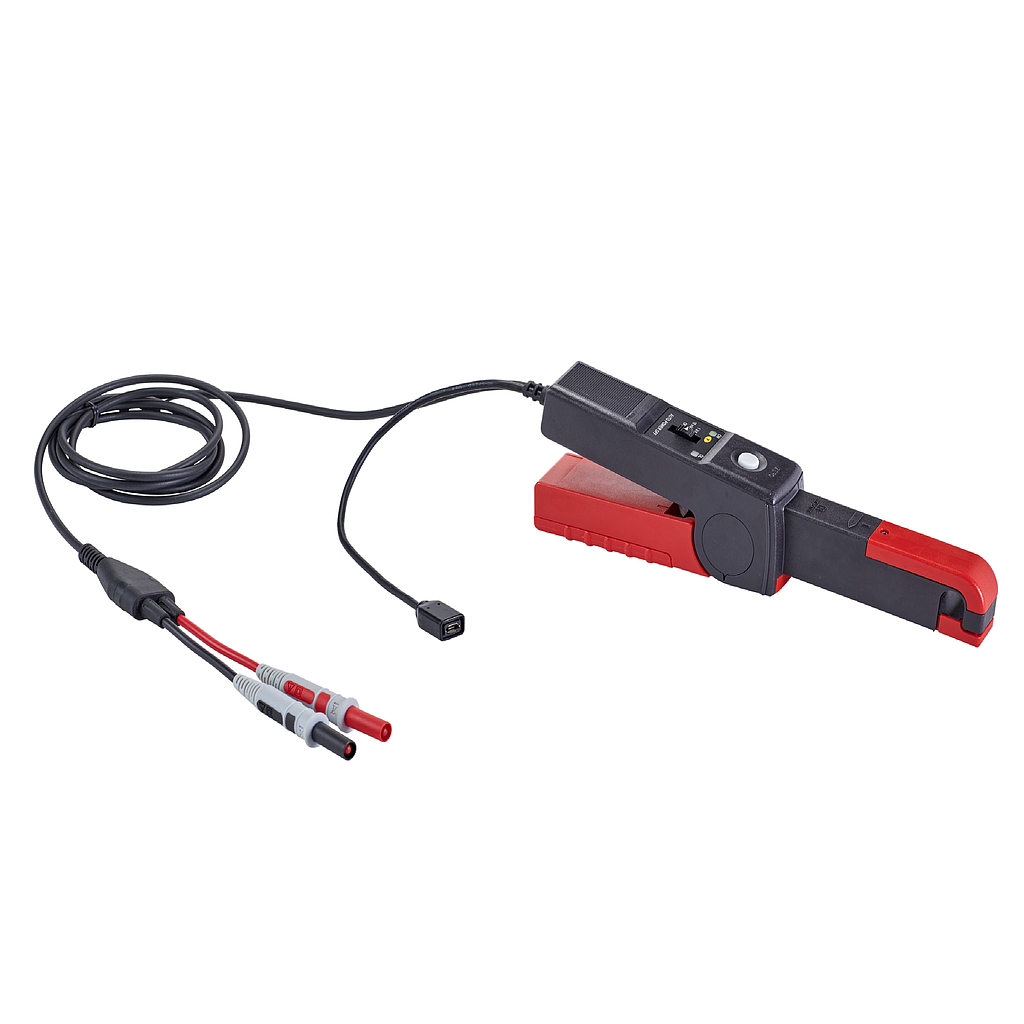

Chauvin Arnoux E25 AC/DC Current Clamp (11.8mm, 2~80ADC, 1.5~60AAC)

Clamping capacity: 11.8mm in diameter

Temperature: 23 ±5°C

Relative humidity: 20~75%RH

Position of the conductor: centred

Frequency of the measured signal: DC~65Hz sine wave

Powered:

by battery: 6.5~9V

external supply: 5V ±0.1V

External electric field: zero

External DC magnetic field (earth's field): < 40A/m

External AC magnetic field: zero

Impedance of the measuring instrument: ≥ 1MΩ and ≤ 100pF

Range:

0.005~2ADC/0.005~1.5AAC Intrinsic uncertainty: ≤ ±(2%R +5mV)

0.05~50ADC/0.05~40AAC Intrinsic uncertainty: ≤ ±(4%R +0,5 mV)

50~80ADC/40~60AAC Intrinsic uncertainty: ≤ ±12%R

Phase shift (DC~65Hz): ≤ 1°

Dimensions (L x W x H): 231 x 36 x 67mm

Weight: approximately 330 g

Measurement lead: 1.5m long

USB cord: 15cm long

Protection: IP20
