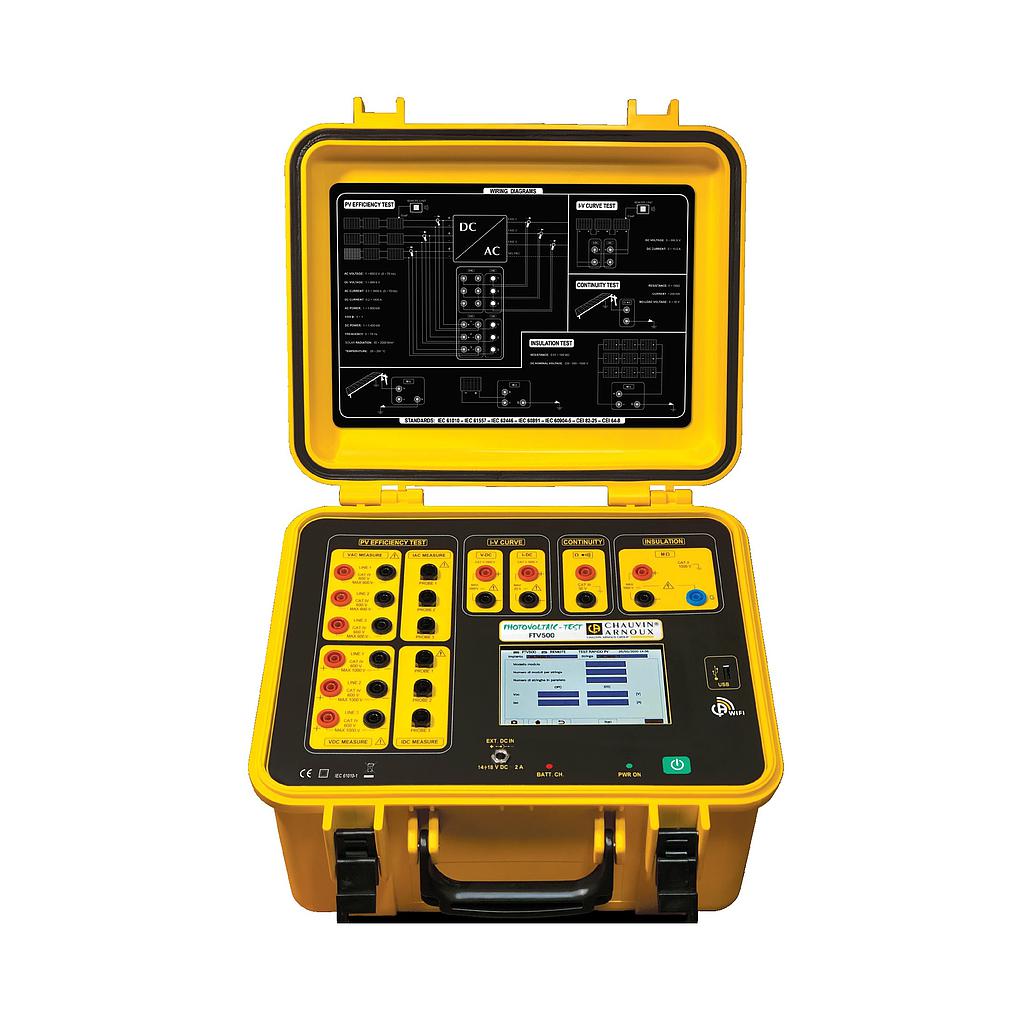

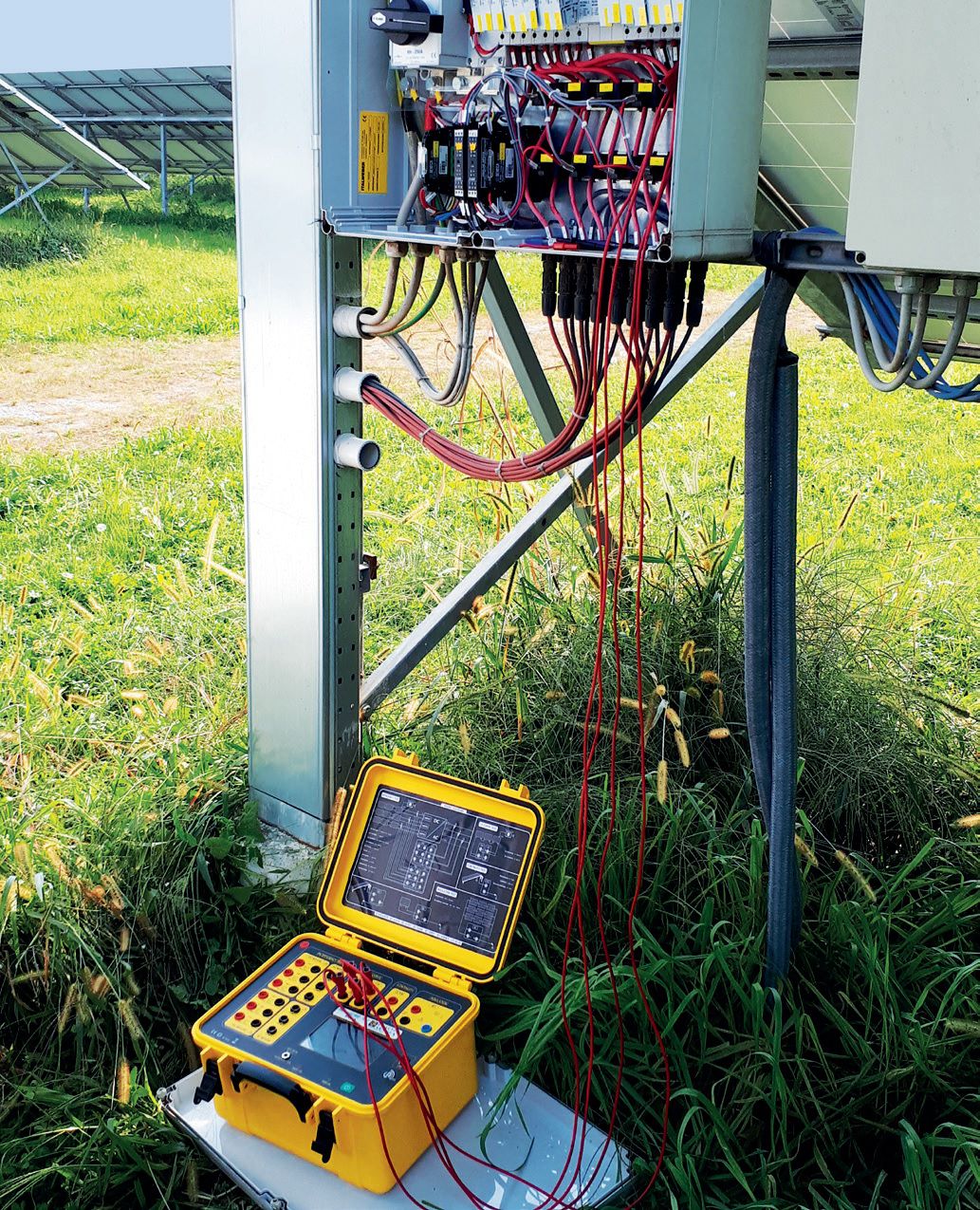

Chauvin Arnoux FTV500 Multifunction tester for photovoltaic systems (999.9V /1400A)

VOLTAGE

DC

Range: from 3 to 999.9V

Resolution: 0.1V

Accuracy: 1%

AC

Range: from 3 to 700.0V

Resolution: 0.1V

Accuracy: 1.5%

CURRENT

DC

Range: from 1 to 1,400A

Resolution: 0.1-1A

Accuracy: 1%

AC

Range: from 1 to 3,000A

Resolution: 0.1-1A

Accuracy: 1%

ENVIRONMENTAL MEASUREMENTS (REMOTE UNIT)

IRRADIATION

Range: 50 to 2,000 W/m2

Resolution: 0.1 W/m2

Accuracy: 2.5%

AMBIENT TEMPERATURE/MODULE TEMPERATURE

Range: from -20°C to + 150°C

Resolution: 0.1°C

Accuracy: 1%

Pt100 sensor on remote unit

I-V CURVE (OPC & STC)

DC Voltage

Range: from 0.005 to 1000V

Resolution: 0.005-0.1V

Accuracy: 1%

DC Current

Range: from 0.005 to 15A (max 20A)

Resolution: 0.005-0.1A

Accuracy: 1%

Power

Range: from 5 to 9999W DC

Resolution: 1W

Accuracy: 1.5%

CONTINUITY

Range: from 0.01 to 99 Ω

Resolution: 0.01-1 Ω

Accuracy: 2% / test current > 200mA according to EN 61557-4

Display: TFT 16.7M colours with Optical Bonding glass, touch screen, dimensions 5”, resolution 800x480

Remote unit: Wi-Fi real-time transmission, real-time and data logging mode / synchronisation when signal is lost

Interface:

Instrument: Wi-Fi transmission and VNC remote control (Virtual Network Computing), USB

Remote unit: Wi-Fi transmission

Memory: Programmable internal database: sites/installations/companies/modules/measurements, with tree structure

Autonomy: over 10.000 blocks for all measurements, 600.000 measurements for data logging

Power Supply / Autonomy:

Instrument: Li-Ion rechargeable batteries with power supply 100-240V 50-60Hz / 15 hours at stand-by (programmable)

Remote unit: Li-Ion rechargeable batteries with power supply and USB cable / 15 hours at standby

Dimensions / Weight:

Instrument: 340 x 300 x 200 mm / about 6 Kg

Remote unit: 160 x 120 x 63 mm / about 1 Kg

Include

Instrument delivered with 1 carrying bag, power supply/battery charger, remote unit + power cable / USB charger, AC clamp MiniFlex MA500 (x3), DC clamp PAC500 (x3), cables 3m red and black (x6), cables I-V red and black, crocodile clips red and black (x2), Flexible female rod 4 mm (x6), inclinometer, set of 12 colored insert/rings, certificate of conformity, user manual digital file format.
