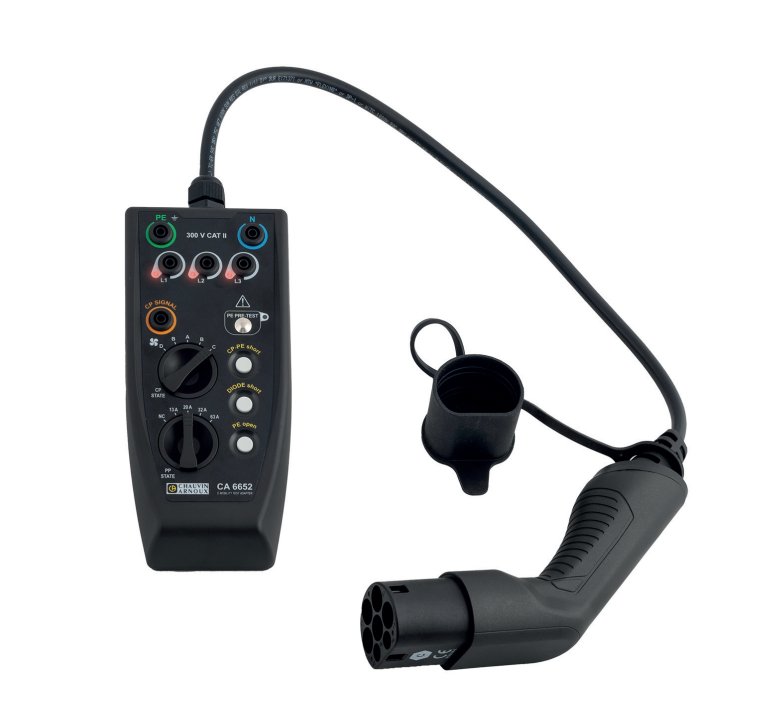

Chauvin Arnoux CA 6652 Electric vehicle charging station tester (1P/230V, 3P/400V)

REFERENCE CONDITIONS

Temperature: 23±5°C

Relative Humidity: 20 to 75%RH

Supply voltage:

230 V single-phase

400 V three-phase

Frequency of the measured signal: 50Hz

ELECTRICAL CHARACTERISTICS

Type 2 connector: 32A, 3PH+N+PE, type E-2201, 200/346V-240/415V

POWER SUPPLY

The CA 6652 is powered by the charging station being tested via the type 2 connector.

ENVIRONMENTAL CONDITIONS

For indoor use or outdoor use without rain.

Operating range: -20 to +55°C, 95%RH (from 0 to 40°C) without condensation

Storage: -20 to +70°C, 90%RH (from -10 to +40°C) without condensation

80%RH (from 40 to 60°C)

Pollution degree: 2

Altitude: <2,000m

CONSTRUCTION SPECIFICATIONS

Dimensions of the housing (L x W x H): 221 x 100 x 44mm

Dimensions of the type 2 connector approximately: 240 x Ø 58mm

Length of the cable: approximately 60cm

Weight approximately: 850g

Ingress protection:

IP40 per IEC 60529, in operation, with all terminals connected.

IP54 per IEC 60529, not in operation, with the type 2 plug protection cap in place.

COMPLIANCE WITH INTERNATIONAL STANDARDS

The instrument is compliant with standards IEC/EN 61010-2-030 and the leads are compliant with IEC/EN 61010-2-031: 300V

Category II, degree of pollution 2.

Instrument with double insulation .

ELECTROMAGNETIC COMPATIBILITY (CEM)

Emission and immunity in an industrial environment per IEC/EN 61326-1.15

Manual
