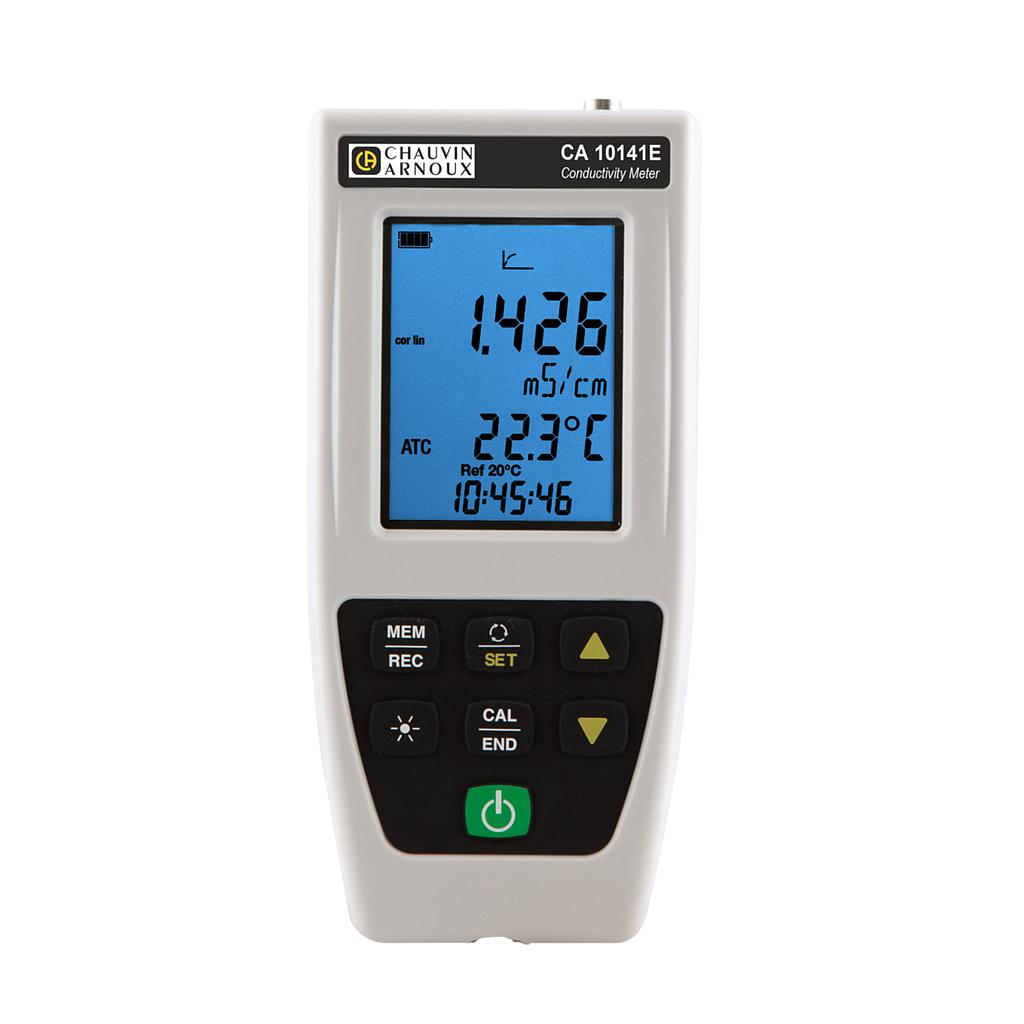

Chauvin Arnoux CA 10141E Laboratory Conductivity Meter (0.050 µS/cm - 200.0 mS/cm)

- Conductivity:

Measurement range: 0.050 µS/cm to 200.0 mS/cm

Resolution (R): 1 nS/cm to 100 μS/cm (depends on range)

Intrinsic uncertainty* ± 1% r** ± R

- TDS:

Measurement range: 0.001 mg/l to 200.0g/l

Resolution (R) 1 μg/l to 100 mg/l (depends on range)

Intrinsic uncertainty ± 1% r ± R

- Resistivity:

Measurement range: 2 Ω.cm to 4999 kΩ.cm

Resolution (R) 1 mΩ.cm to 1 kΩ.cm (depends on range)

Intrinsic uncertainty ± 1% r ± R

- Salinity:

Measurement range: 2.0 to 42.0 psu

Resolution (R) 0.1 psu

Intrinsic uncertainty ± 0.5% r ± R

- Temperature:

Measurement range: -10 to 120 °C / 14 to 248.0 °F

Resolution (R) 0.1 °C / 0.1 °F

Intrinsic uncertainty ± 0.4°C / ± 0.7 °F

Tref available 20/25°C (68/77°F)

- Calibration: 1 point, 6 predefined conductivity references modifiable by the user

- T°C compensation: Automatic (ATC) or manual (MTC), -10 to 120°C / 14 to 248 °F

- Temperature correction: Linear, non-linear, no correction

- Probe NOT SUPPLIED

- Data storage 100,000 measurements

- Batteries / Battery life: 4 x 1.5 V AA or LR6 alkaline batteries /~200h use

- Sensors input: BNC (conductivity cell); Jack (Pt1000 temperature probe)

- Communication interface: Type-B micro-USB (also used for power supply); Analogue outputs for conductivity/TDS/salinity/resistivity and temperature (3 x 4 mm banana)

- Dimensions (with sheath) 211x127x54 mm

- Weight 600 g (with batteries)

- Environmental conditions: Storage: -20 to +70°C; Operation: -10 to +55 °C

Datasheet

Manual
