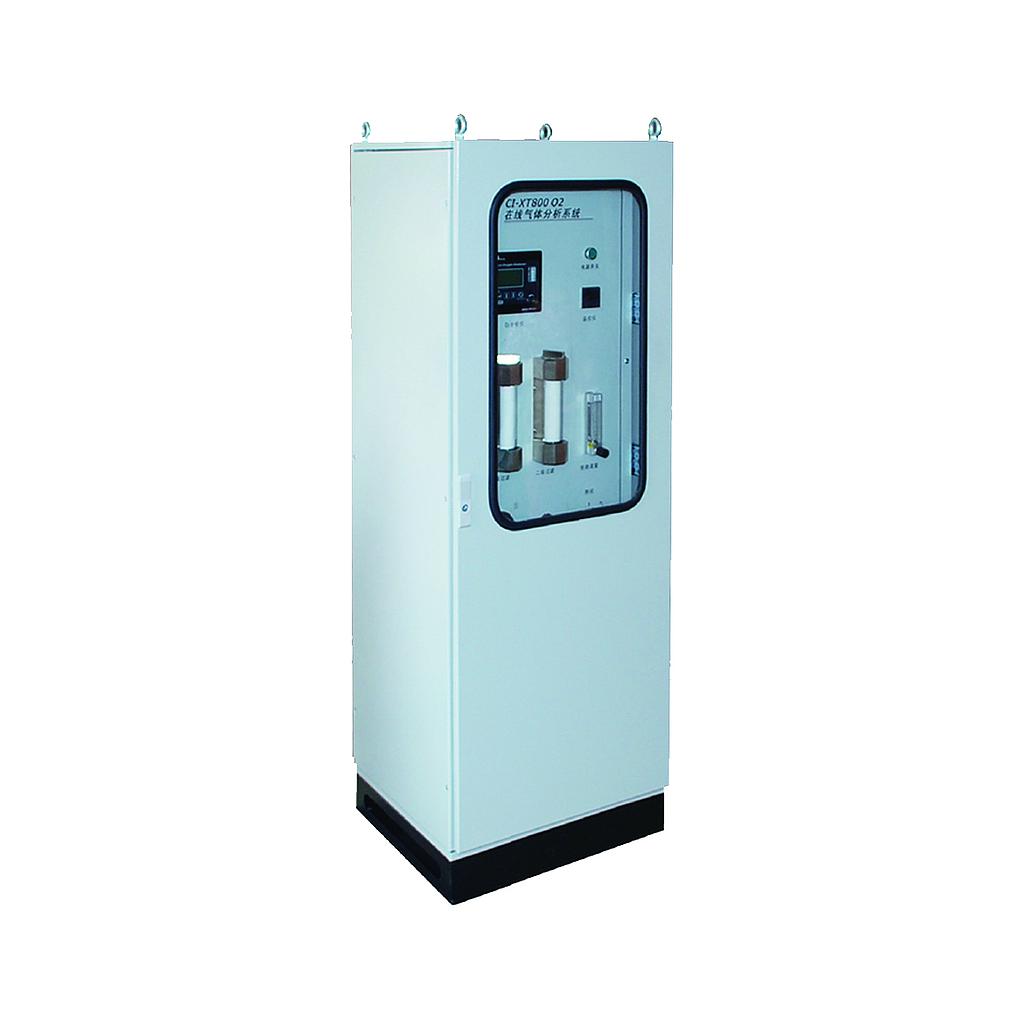

Chang AI CI-XT800 On-line monitoring system for carbon dioxide recovery (50~100KPa)

reaction rate

The lag time (T10) and rise time (T10-T90) of the analyzer

Lag time: T10≤5s

Rising time: T10~T90≤2s

Delay time and rise time of the system

Lag time: T10≤30s

Rising time: T10~T90≤2s

Main Technical Indicators

Zero drift: ≤±1% FS/7d

Range drift: ≤±1% FS/7d

Repeatability: ≤0.5%

Load: ≤750Ω

Output signal: 4~20 mA DC

Applicable working conditions

Gas sample temperature: ≤60°C

Gas sample pressure and fluctuation range: -50~100KPa

Gas sample flow: ≤300L/h

Gas dust concentration: ≤2000g/m3

Corrosive: There is no strong corrosive component in the gas sample.

Working conditions

Environmental temperature: 5~45°C

Relative humidity: ≤85%

Power supply: 220 VAC±10% 50/60Hz

Power consumption: ≤0.5KVA

Environmental atmosphere: The environment does not contain explosive and corrosive atmosphere and has good ventilation conditions.

Ambient pressure: Elevation below 2500 m

No direct sunlight radiation

No strong electromagnetic interference

No mechanical vibration

Air velocity: ≤0.5m/s

Working position: Horizontal
