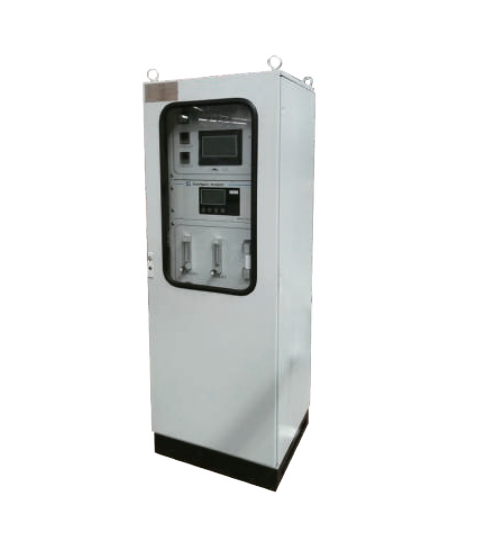

Chang AI CI-XT62B Heat treatment furnace-controllable atmosphere analysis system (0~45°C, 0-10/100/1000PPm%O2, 0-60% H2)

System power supply: AC220V 50HZ

Signal output: 4~20mA(RS485 Communication Matching)

Environmentaltemperature: 0~45°C

Sample pressure: Micro-negative pressure,positive pressure or atmospheric pressure(according to different configurations of pressure relief valve orpump)

Shape size: DxWxH=600x600x1700(including base)

Analyzer (optional according to working condition)

Humidity analyzer

Range: -80~+60°C (optional)

Sensor manufacturers: CHANGAI

Detector quantity: Capacitive polymer film

Micro-oxygen analyzer

Range: 0-10/100/1000PPm%O2

Sensor manufacturers: USA

Detector quantity: Electrochemistry

Hydrogen analyzer

Hydrogen analyzer Range: 0-60% H2

Sensor manufacturers: USA

Detector quantity: Thermal conductivity
