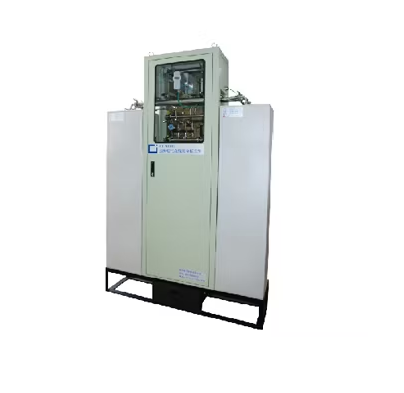

Chang AI CI-XT100-B Coke oven gas analysis system (0-25.0% O2)

Measurement components and ranges: 0-25.0% O2

Detection principle: Tunable Semiconductor Laser Diode. Absorption Spectrometry (TDLAS)

System power supply: DC24V 10W

Alarm: 1-way alarm output(analyzer failure alarm)

Relay contact capacity: 24VDC,0.2A

Signal output: A group of 4-20 mA outputs correspond to O2

Environmental temperature: 0-45°C Environmental humidity:Less than 80% RH

Intake pressure: Steam injection sampling at negative and micro-positive pressures

Sample flow rate: 4-6L/min

Inlet and outlet interfaces: Φ25Clamp locking mode

Analyzer life: More than 5 years (normal use)

Installation mode: Base expansion screw fixation

Circuit structure: Applied in low explosion-proof or non-explosion-proof occasions

System warranty period: 12 months

Calibration of analyzer: It is suggested that one calibration should be carried out once a year,and one standard gas and high purity nitrogen, should be prepared for each calibration zero point and range point.

System size: D*W*H=1530mm*420mm*2280mm

Housing dimensions: D*W*H=3000mm*3000mm*3000mm

Installation dimensions: D*W=1466mm*366mm (expanding screw)

Packing box: Wooden box packing

System weight: About 300 Kg
