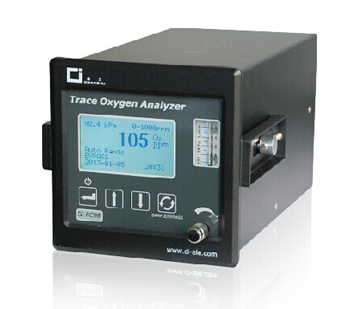

Chang AI CI-PC96 Trace Oxygen Analyzer (0~10/100/1000ppm/1%/25% O2)

Measure range: 0~10/100/1000ppm/1%/25% O2

Sensor principle: fuel cell type

Accuracy:

0.01~9.99ppm O2:±5% FS

10.0~99.9ppm O2:±3% FS

100~1000ppm O2:±2% FS

Repeatability:

0.01~9.99ppm O2:±2.5% FS

10.0~99.9ppm O2:±1.5% FS

100~1000ppm O2:±1% FS

Stability:

0.01~9.99ppm O2:±2.5% FS/7d

10.0~99.9ppm O2:±1.5% FS/7d

100~1000ppm O2:±1% FS/7d

Response time: T90<60s(25°C)

Switch output: 2 sets,Relay contact point capacity:24V DC,0.2A

Power supply: CI-PC96:85~264VAC 50/60Hz; CI-PC961:24VDC,Power consumption less than 20VA

Communication: RS485(standard)/RS232(standard)

Environment

temperature: 0~45°C Environment Humidity:<80%RH

Sample gas pressure: atmospheric conditions±10% (Gas outlet should be atmospheric conditions)

Analyzer size: L×W×D=144mm×144mm×251mm
