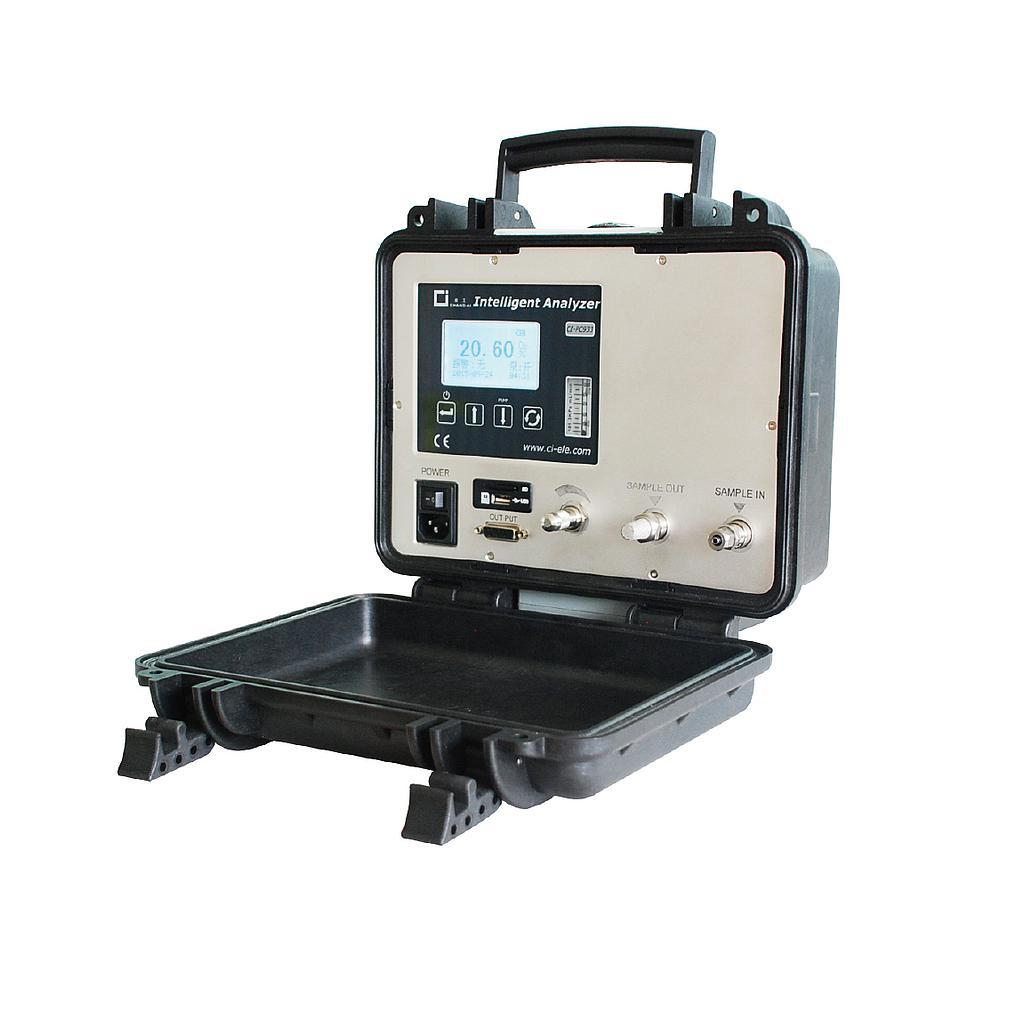

Chang AI CI-PC933 Electrochemical oxygen analyzer (0~25.00% O2)

Measure range: 0~25.00% O2

Sensor: electrochemical gas sensor

Accuracy: ±2%FS

Repeatability: ±1%FS

Stability: ±1%FS/7d

Response time: T90<20s

Display: 128×64 LCD

Power supply: 85~264VAC,50/60Hz

Power consumption of analyzer: less than 20VA

Communication: RS485(standard)/RS232(optional)

Signal output: Alarm output:2 sets of switching signals(1 set of state alarm,1 set of concentration alarm) Relay contact point capacity:24V DC,0.2A

Analog output: 1 set,4-20mA/0-20mA/0-1V/0-5V/0-10V/ 1-5V,(You can set the mode freely). The load:less than 500 Ω

External control: Number:1 group;Control signal:9-28VDC

Environment temperature: -10~45°C

Environment humidity: <80%RH

Sample gas flow rate: 500~1000ml/min

Sample gas pressure: conditions±10%(Gas outlet should be atmospheric conditions)

Inlet and outlet: 1/4-inch NPT internal thread,stainless steel

Weight: 4.25kg net,5.25kg after packaging

Packing case size: L×W×H=470mm×410mm×315mm
