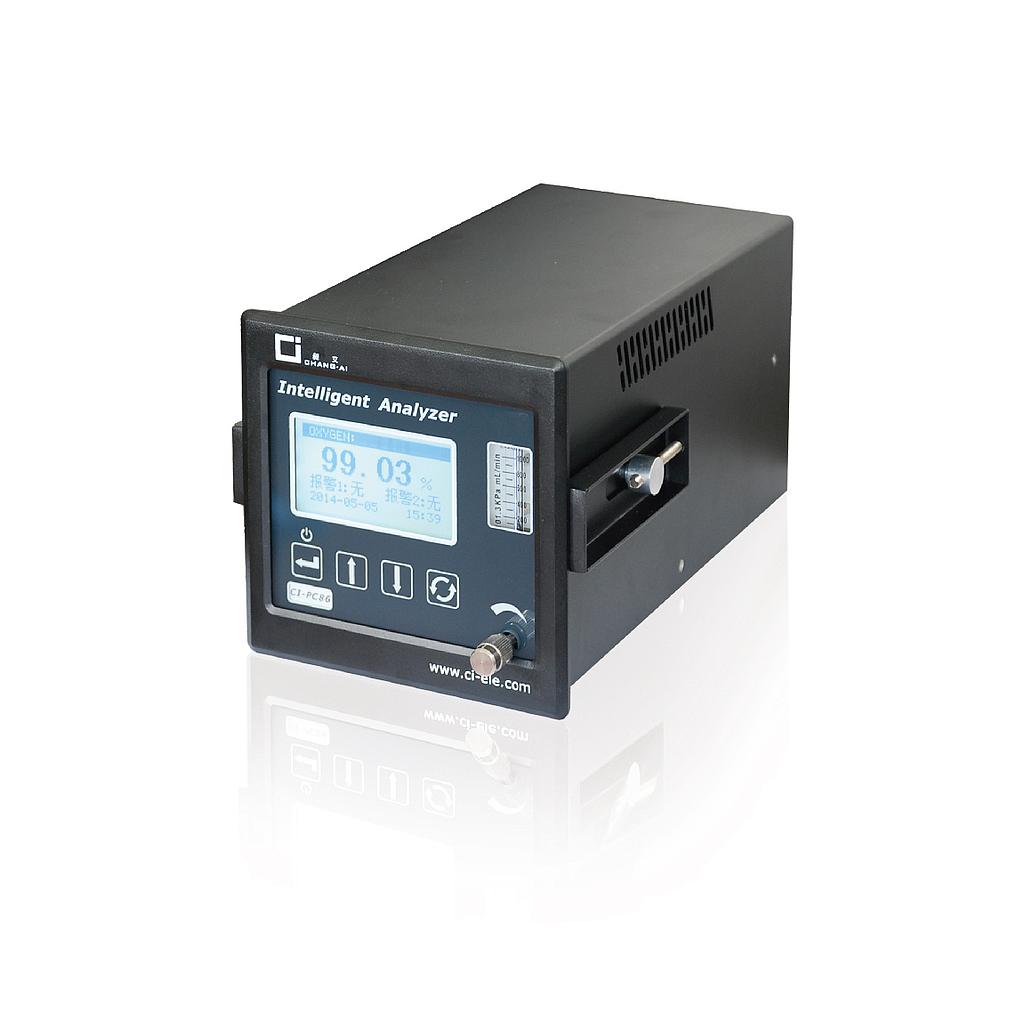

Chang AI CI-PC86 High content oxygen analyzer (10~97.00% / 99.99%,97~99.99% O2)

Measure range: 10~97.00% / 99.99%,97~99.99% O2

Accuracy: ±1%FS

Repeatability: ±0.5%FS

Stability: ±0.5%FS/7d

Response time: T90<15s

Sensor: 3D Ion flow oxygen sensor

Display resolution: 0.01%

Relay contact point capacity: 24VDC,0.2A

Power supply: 85~264VAC,50/60Hz

Analyzer power consumption: <20VA

Communication: RS485(standard)/RS232(optional)

Environment temperature: -10~55°C

Environment humidity: <85%RH

Measuring method: gas inlet type

Sample flow rate: 400~600ml/min

Flow control: built-in needle valve

Sensor life: more than 5 years (normal use)

Instrument life: more than 10 years (normal use)

Instrument size: L×W×H=144mm×144mm×290mm

Installation: Disk-mounted

Mounting hole size: L×W=136mm×136mm
