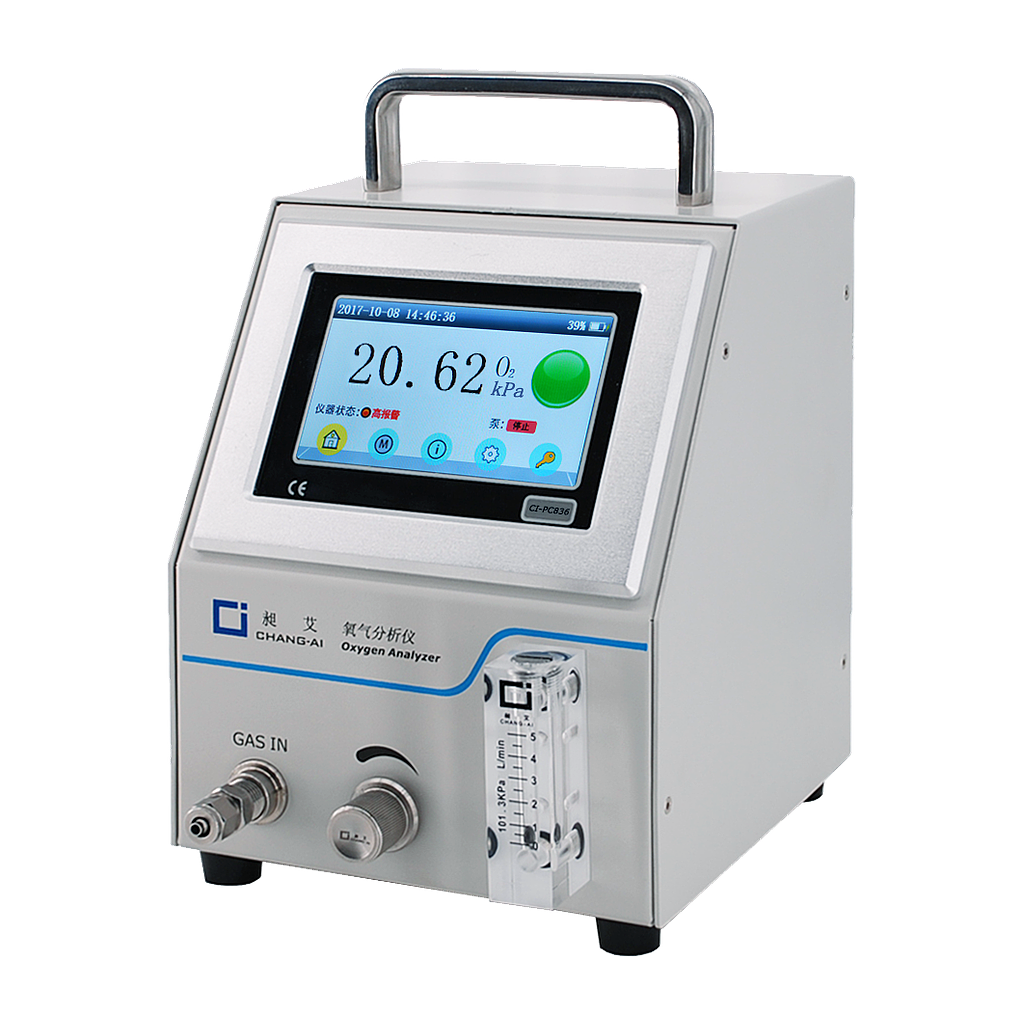

Chang AI CI-PC836 Oxygen content/oxygen partial pressure analyzer (1~40kPa O2)

Measure range: 1~40kPa O2

Sensor: 3D Ion flow oxygen sensor

Accuracy: ±1% FS

Repeatability: ±0.5% FS

Stability: ±0.5% FS/7d

Response time: T90<15s

Display resolution: 0.01%

Measurement mode: portable

Calibration cycle: one year (recommended)

Power supply: 220VAC±,50/60Hz

Analyzer power consumption: <15VA

Standby time: more than 3.5 hours during normal test

Sensor life: more than 36 months (normal use)

Instrument life: more than 60 months (normal use)

Weight: 3kg±0.5kg (slightly different depending on configuration)

Sampling gas temperature: 0~50°C

Sample gas pressure: atmospheric conditions±10% (Gas outlet should be atmospheric conditions)

Sample flow rate: 400~600ml/min

Inlet: Standard 1/4-Φ6 Tetrafluoro Tube Joints (Replaceable)

Communication: RS485/RS232

Switch output: Alarm output:1 set; Relay contact point capacity:24V DC,0.2A

Analog output: 1 set,4-20mA/0-20mA/0-1V/0-5V/0-10V/ 1-5V,(You can set the mode freely). The load:less than 500 Ω
