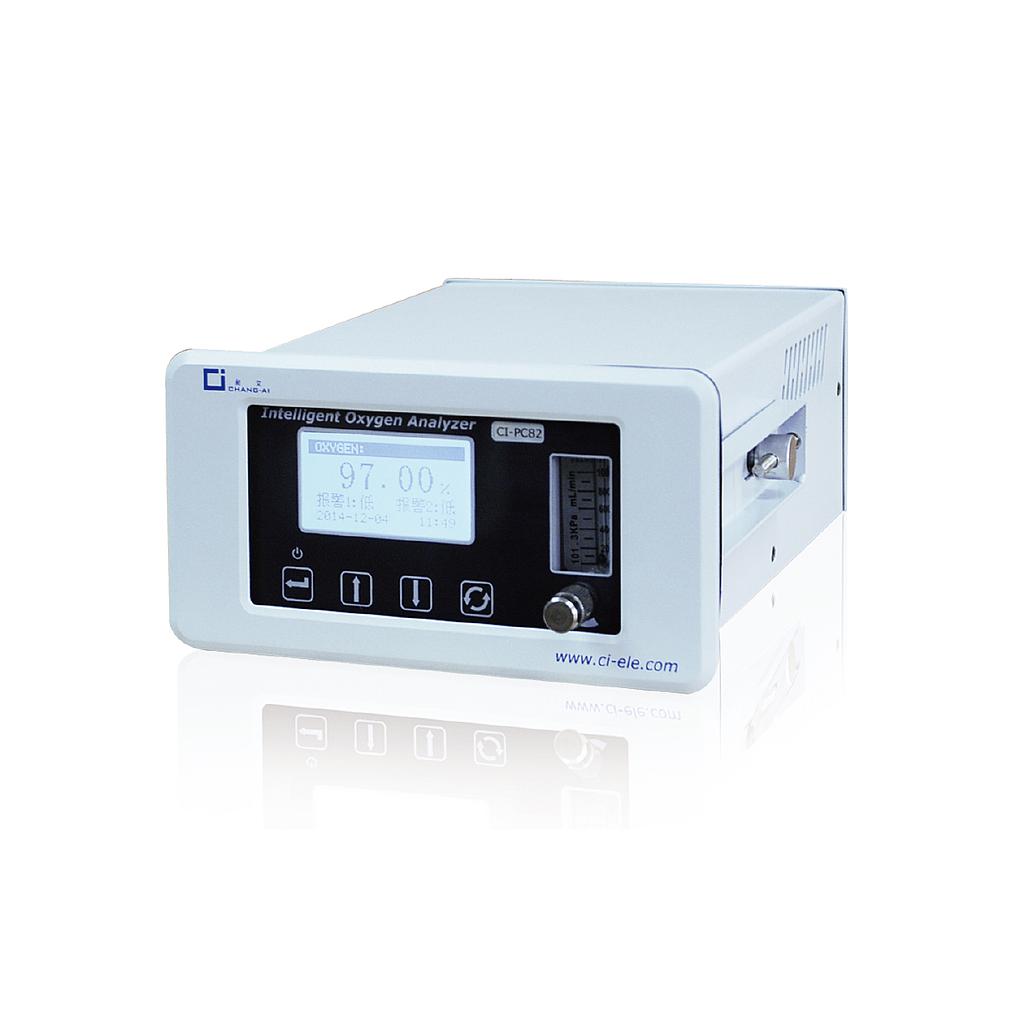

Chang AI CI-PC82 High content oxygen analyzer (10.00%~98.00%/ 99.99% O2)

Measure range: 10.00%~98.00%/ 99.99% O2

Sensor: 3D Ion flow oxygen sensor

Accuracy: ±1%FS

Repeatability: ±0.5%FS

Stability: ±0.5%/7d

Response time: T90<20s(after full preheating)

Circuit structure: applied to non-hazardous situations.

Weight of analyzer: net weight 2.15kg,about 3.05kg after packaging

Power supply: 85~264VAC,50/60Hz

Analyzer power consumption: <20VA

Communication: RS485(standard)/RS232(optional)

Relay contact point capacity: 24VDC,0.2A

Analog output: 1 set,4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V (You can set the mode freely).

Environment temperature: -10~55°C Environment Humidity:<85%RH

Sample gas pressure: atmospheric conditions±10%(Gas outletshould be atmospheric conditions)

Sensor life: more than 10 years (normal use)

Instrument life: more than 10 years (normal use)

Instrument size: L×W×D=188.5mm×98.5mm×207.5mm

Installation: Disk-mounted

Mounting hole size: L×W=170mm×90mm
