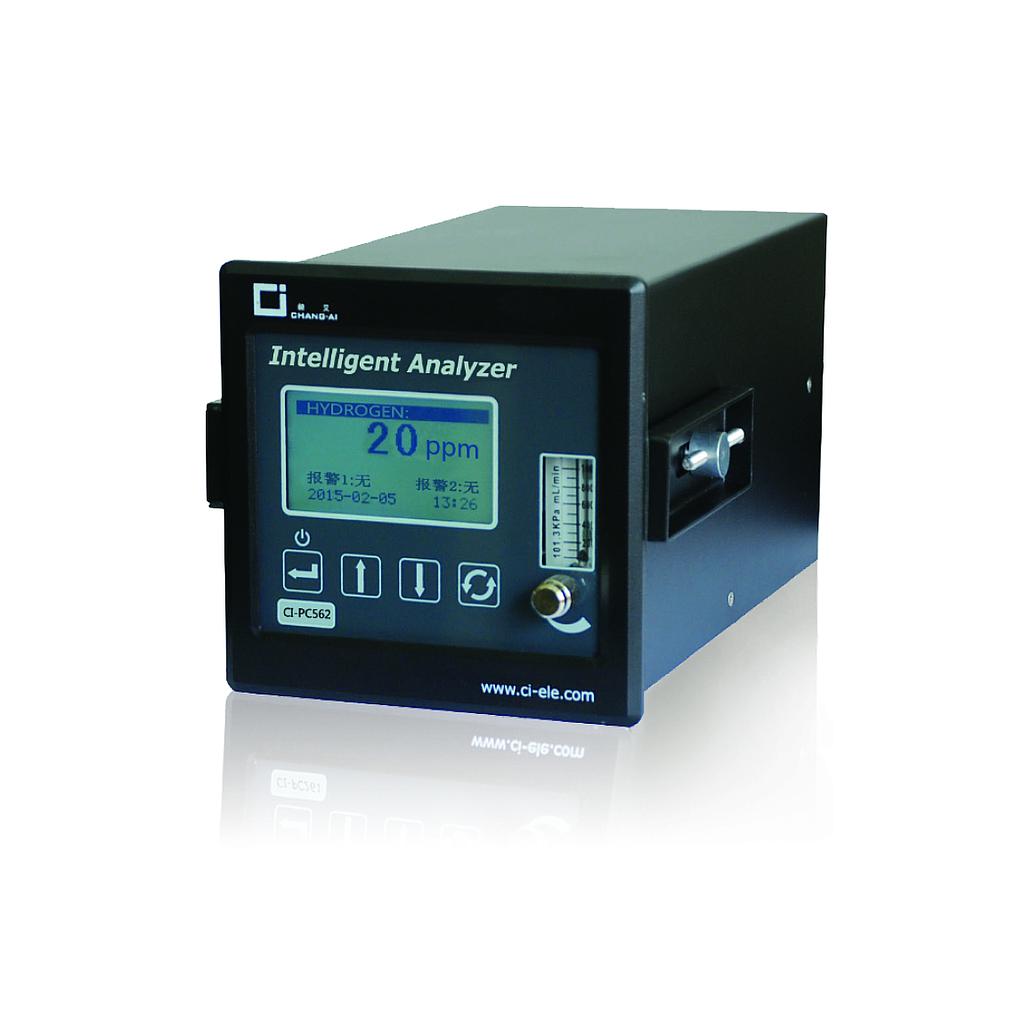

Chang AI CI-PC562 Micro-hydrogen analyzer (0~10ppm/2000ppm/2.000% H2)

Sensors: Electrochemical hydrogen sensor

Range: 0~10ppm/2000ppm/2.000% H2

Accuracy: ±2% FS

Repeatability: ±1% FS

Stability: ±1% FS/7d

Response time: T90<70s(0~1000ppm)

Backgroundgases: Nitrogen,argon,etc.

Measurements: On-line

Key: Four keys (touch keys)

Power supply: 85~264VAC,50/60Hz

Environmental temperature: -10~50°C

Environmental humidity: Less than80%RH

Sample pressure: Atmospheric pressure ±10% (outlet should be atmospheric pressure)

Sample flow rate: 400~600ml/min

Sensor life: More than 2 years (normal use)

Instrument life: More than 5 years (normal use)

Relay contact capacity: 24VDC,0.2A

Alarm output: Group 2 (COM and NO)

Communication: RS485/RS232 bidirectional communication

Analog signal: Group 1 (mode 4-20 mA/0-20 mA/ 0-1V/0-5V/0-10V/1-5V)
