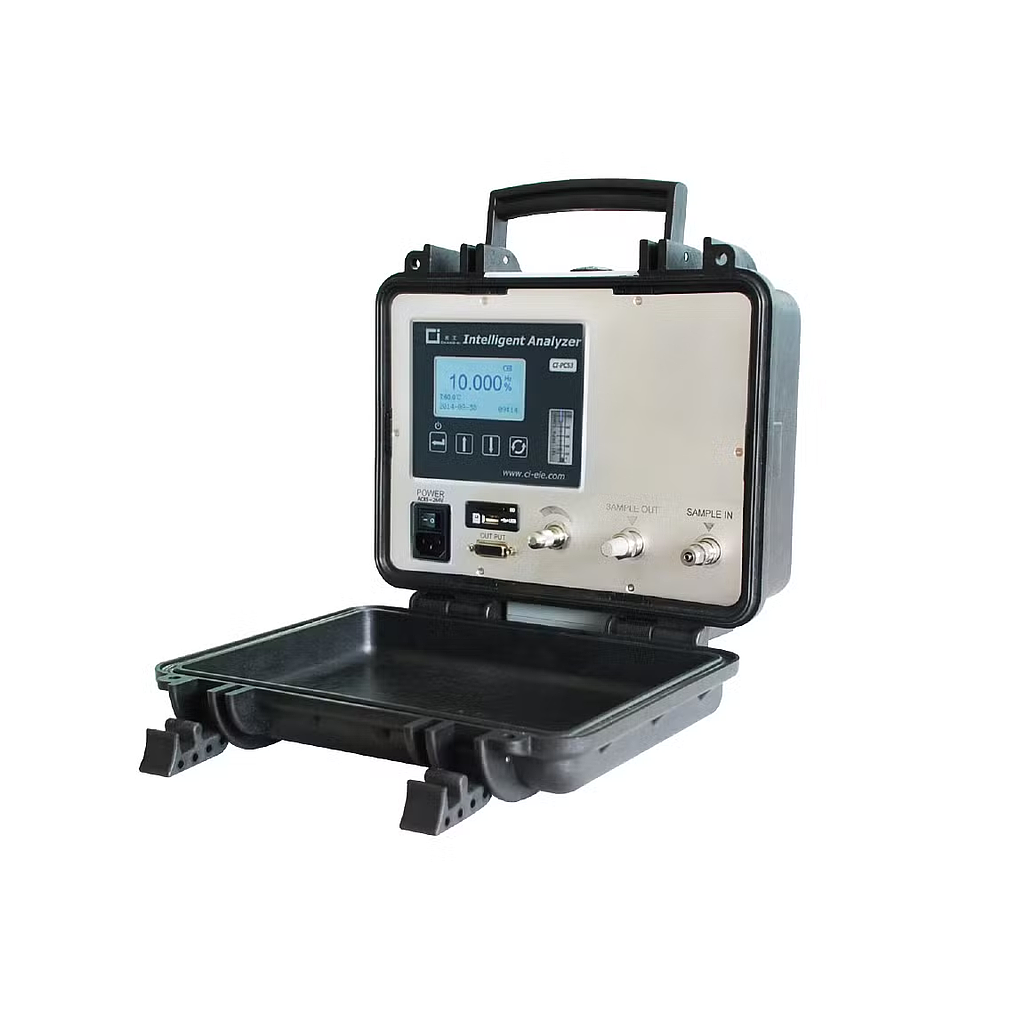

Chang AI CI-PC53 Portable thermal conductivity analyzer

Range:

H2: 0~100%

He: 0~2%

Ar: 0~10%

CO2: 0~20%

CH4: 0~15%

H2 in Blast Furnace Gas: 0~10%

H2 in acid converter gas: 0~20%

H2 in Wood Gasification: 0~30%

Detection principle: Thermal Conductivity Sensor

Accuracy: ±2%FS

Repeatability: ±1%FS

Stability: ±1%FS/7d

Response time: T90<30s

Charging power supply: 85~264VAC,50/60Hz

Power consumption of analyzer: Less than 15VA

Communication: RS485(Standard Matching)/RS232(Optional Matching)

Alarm: Two sets of switching signals (one set of state alarm and one set of concentration alarm) Relay Contact Capacity: 24V DC, 0.2A

Analog output signal: Group 1,4-20mA/0-20mA/0-1V/0-5V/0-10V/1-5V,freely set mode Load:less than 500Ω

Environmental temperature: -10~45°C Environmental humidity: less than 80% RH

External control: Quantity: Group 1. Control signal:9-28VDC. Purpose: Controlling pumps(selection)

Sample pressure: atmospheric pressure ±10%(outlet should be atmospheric pressure)

Analyzer weight: net weight 4.25 kg
