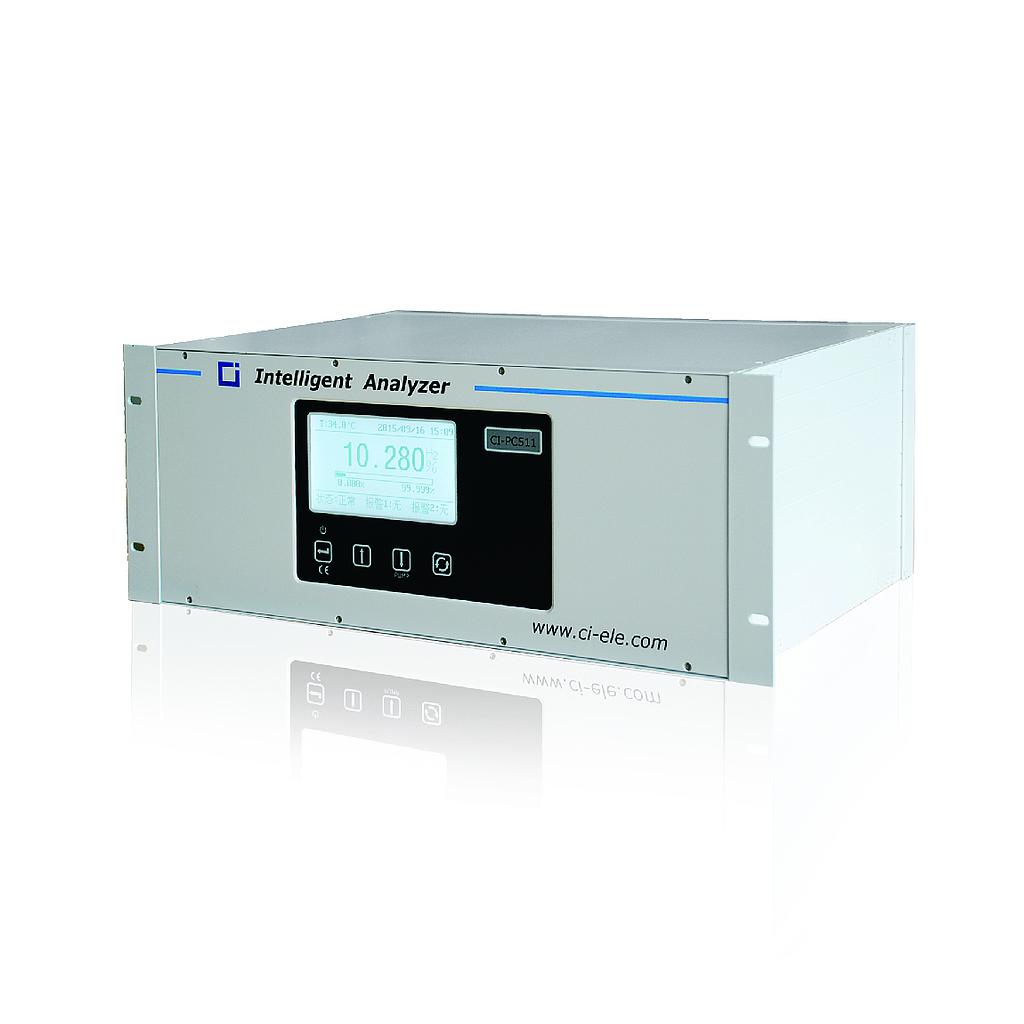

Chang AI CI-PC511 Thermal Conductivity Analyzer

Sensors: Thermal Conductivity Sensor

Accuracy: ±2%FS

Repeatability: ±1%FS

Stability: ±1%FS/7d

Response time: T90<30s

Monitor: 240×128 LCD

Power supply: 85~264VAC,50/60Hz

Power waste: Less than 35VA

Communication: RS485(Standard Matching)/RS232 (Optional Matching)

Switch output: Concentration alarm:2 groups,others:4 groups. Relay Contact Capacity:24VDC,0.2A

Analog output signal: Group 1,4-20mA/0-20mA/0-1V/0-5V/0-10V /1-5V,freely set mode Load:less than 500Ω

External input: Interference Compensation:Two Groups (Analog Signals). External control:5 groups (9-28 VDC)

Environmental temperature: -10~+45°C Environmental humidity:less than 80% RH

Sample pressure: Atmospheric pressure ±10% (outlet should be atmospheric pressure)

Sample flow rate: 200-400 ml/min
