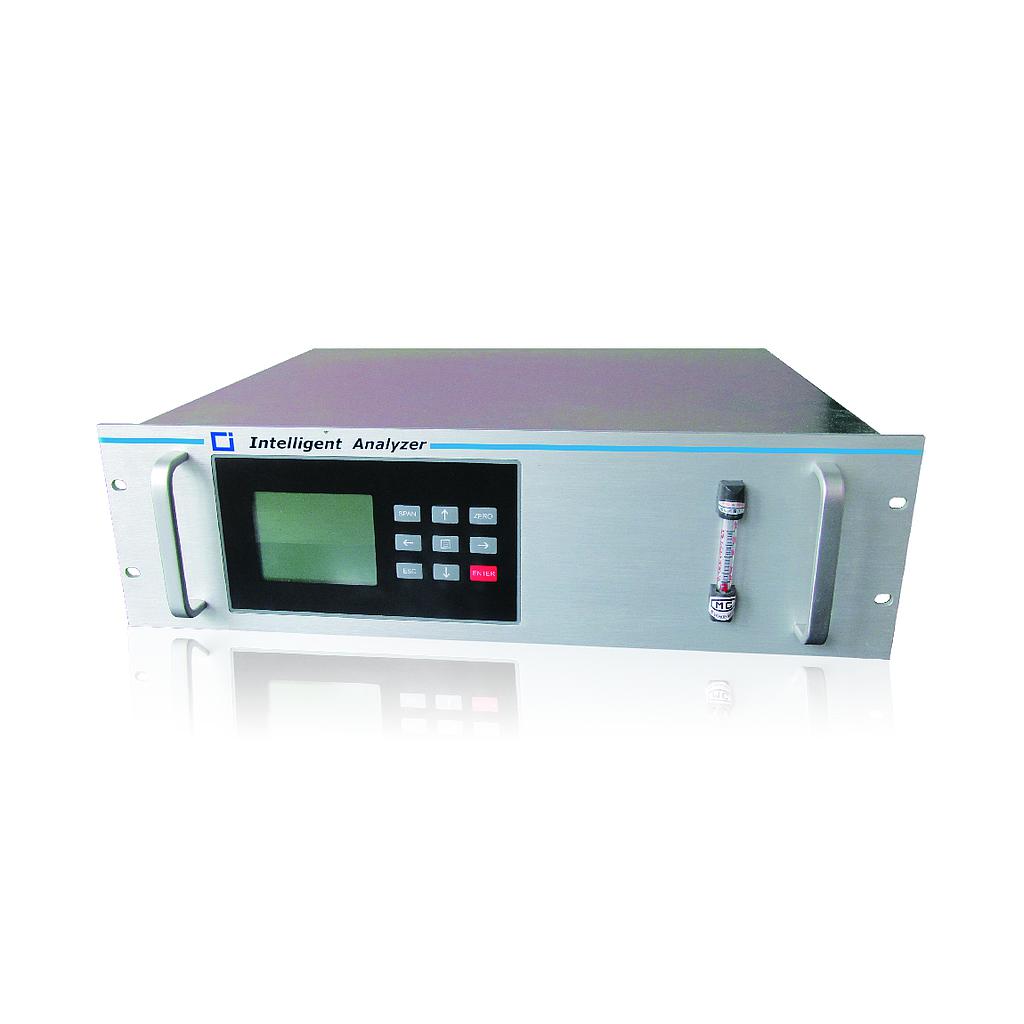

Chang AI CI-PC2200 Ultraviolet analyzer (SO2 0-100/500/2000 ppm; NO 0-100/500/2000 ppm; O2 0-25%,)

Range:

SO2 0-100/500/2000 ppm or more,customizable,UV principle

NO 0-100/500/2000 ppm or more,customizable,UV principle

O2 0-25%,electrochemical principle

Accuracy: ±2%FS

Repeatability: ±1%FS

Response time: T90<10s

Lower detection limit: SO2/NO:1ppm,O2:0.1%

Zero drift: ±2%FS/7d

Range drift: ±2%FS/7d

Stability: The change of indication within one hour isno more than 2%.

Environmental temperature: -10~50°C Environmental humidity:<95% RH

Sample pressure: Current Environmental Pressure ±0.1Bar

Analog input: 4-20mA,2-way,flexible configuration

Analog output: 4-20mA,4 channels,output content configurable

Switch output: 14 channels,output content configurable

Communication mode: Route 1:232,Route 1:485

Power/power: 220VAC,120W

Instrument size: L×W×H=482×320×133mm
