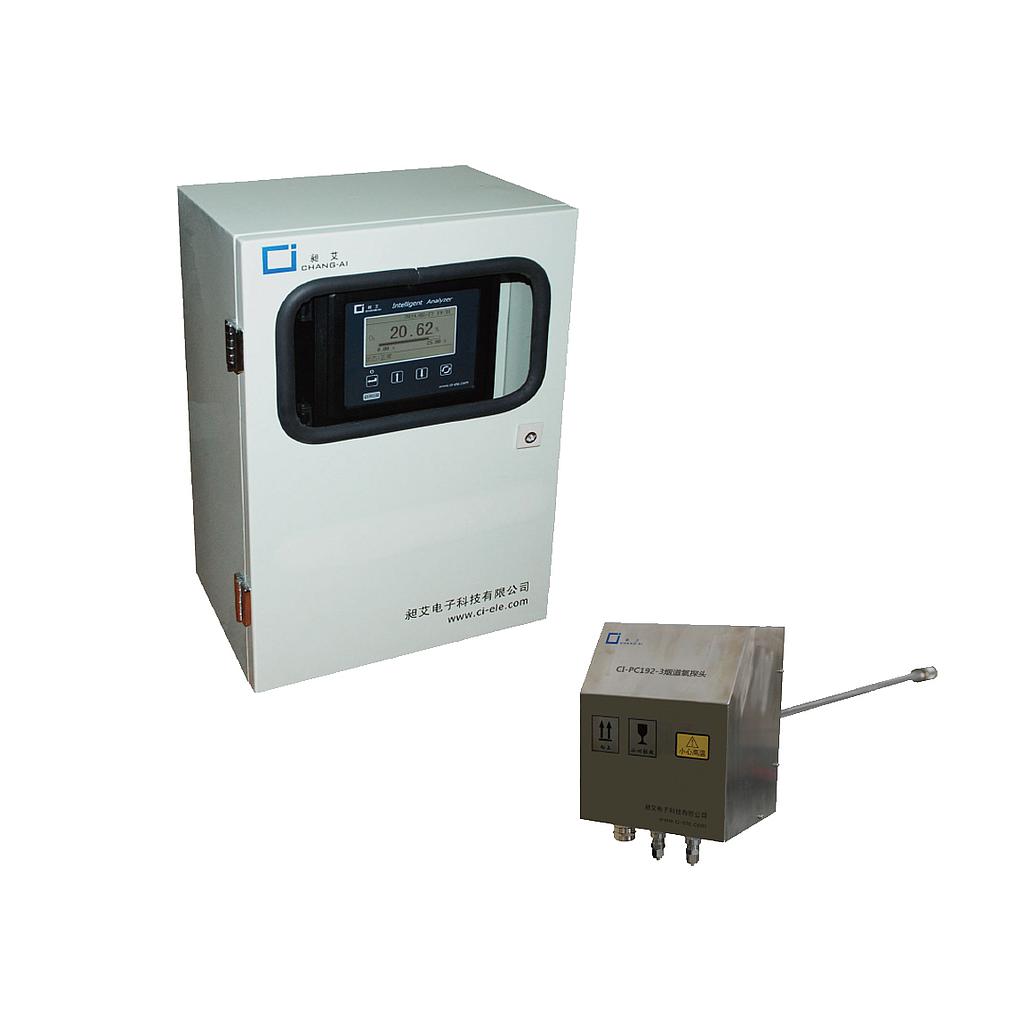

Chang AI CI-PC192 Flue oxygen analysis system (0.01%~25.00% O2)

Measurement range: 0.01%~25.00% O2

Resolving power: 0.01%

Accuracy:

0.01%~0.1%: ±3%FS

0.01%~1%: ±3%FS

0.01%~25%: ±2%FS

Repeatability:

0.01%~0.1%: ±1.5%FS

0.01%~1%: ±1.5%FS

0.01%~25%: ±1%FS

Stability: ±1% FS/7d

Response time: T90<30s(after full preheating)

Sensor: Variable frequency ion current oxygen sensor

Relay contact capacity: 24VDC,0.2A

Power supply: 85~264VAC,50/60Hz

Communication: RS485(standard)/RS232(optional)

Sensor life: More than 2 years (normal use)

System ambient temperature: -10~50°C

Ambient temperatureof probe: Probe material SUS310S 800°C; Probe material SIC 1400°C

Measurement method: Ejection type

Installation mode of analysis system: Wall mounted

Installation dimension of analysis system: L×W=560mm×360mm(4×Φ8)

Probe insertion depth: 400mm,600mm,800mm,1000mm,1200mm,1500mm,1800mm,etc(can be customized according to users' needs)
