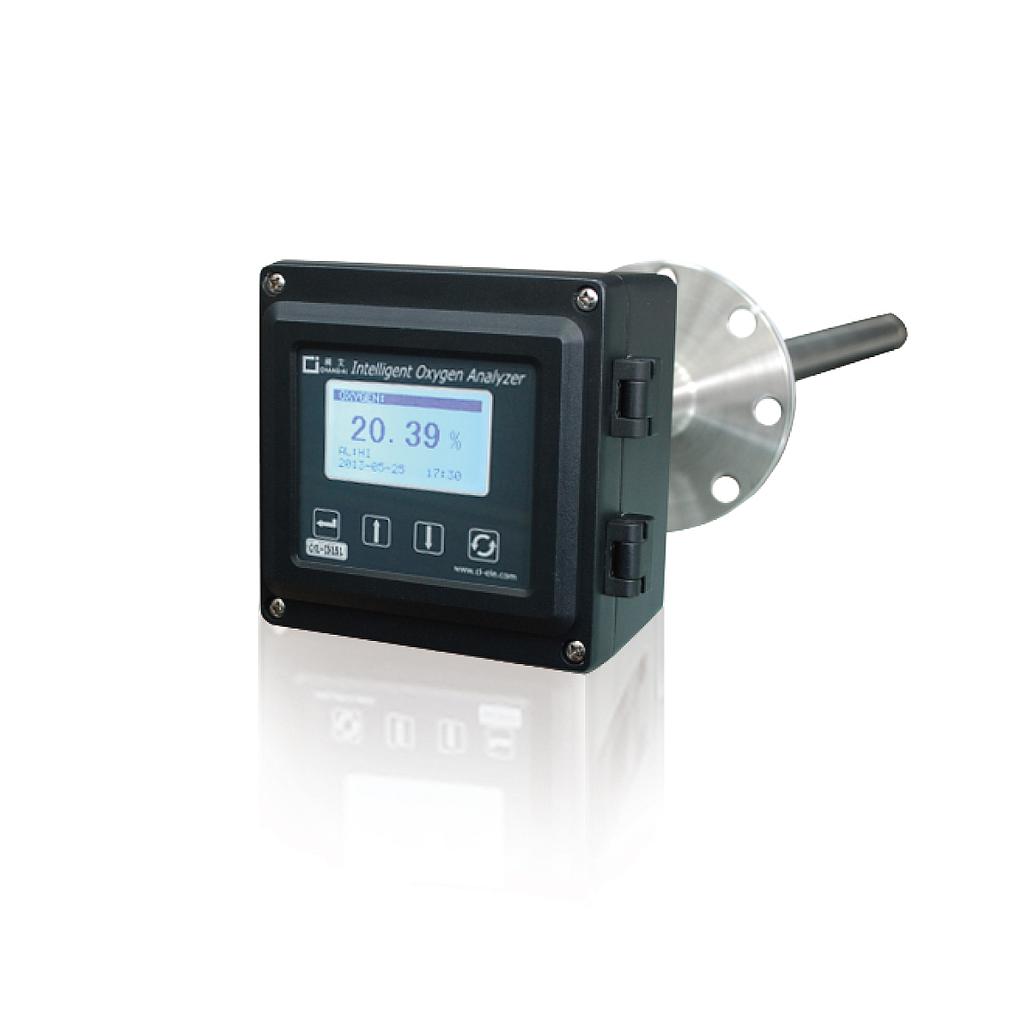

Chang AI CI-PC191 Direct Inserted Oxygen Analyzer for Flue Gas (0~25.00% O2)

Measurement range: 0~25.00% O2

Accuracy:

0.01%~0.1%: ±3%FS

0.01%~1%: ±3%FS

0.01%~25%: ±2%FS

Repeatability:

0.01%~0.1%: ±1.5%FS

0.01%~1%: ±1.5%FS

0.01%~25%: ±1%FS

Stability: ±1% FS/7d

Response time: T90<30s (after full preheating)

Power supply: 24VDC,7A

Relay contact capacity: 24VDC,0.2A (optional alarm)

Communication: RS232 (Standard)/RS485(optional)

Sensor life: More than 2 years (normal use)

Sensor model: GYB4.9

Ambient temperature of meter: -10~60°C

Ambient temperature of probe: CI-PC191 is 0~500°C,CI-PC191-1 is 0~180°C

Header size: L×W×H=158mm×158mm×99.5mm

Probe insertion depth: 600mm,800mm,1000mm,1200mm,1500m m,1800mm Can be customized according to user needs

Sensor warm up time: About 2 minutes.

Probe tube outer diameter: Φ40mm
