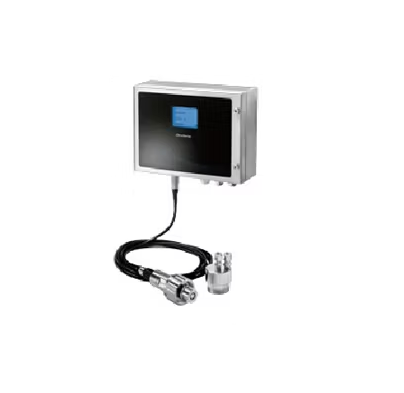

Chang AI 61101 On-line dissolved oxygen gas analyzer (0.5ppm (v/v)–100%)

Power supply: 85-264VAC,50/60Hz

Power waste: Less than 20VA

Working temperature: -5~50°C

Shell: Stainless steel,IP65/Nema4X

Weight: 3.0 kg

Size: 230mmx180mmx75mm

Display data: Temperature,concentration,time,film type

Liquid display unit: ppm,ppb,mg/l

Gaseous displayunit: Resolution 0.01 ppb%-ppm,kPa

Measuring concentration of liquid oxygen: Resolution 0.01 ppm 0.1ppb-200ppm

Gaseous oxygen concentration measurement: 0.5ppm (v/v)–100%

Film type: 82952,82956,82935

Hot cutoff: Factory Settings+40°C/140°F,Software Adjustable

Calibration: Single point air calibration and direct calibration

Alarm output: High/low or high/high alarm-125 VAC/ 20 VDC

Data output Communication Interface: RS 232/RS 485

Sensor selection: Oxygen sensor 51101
