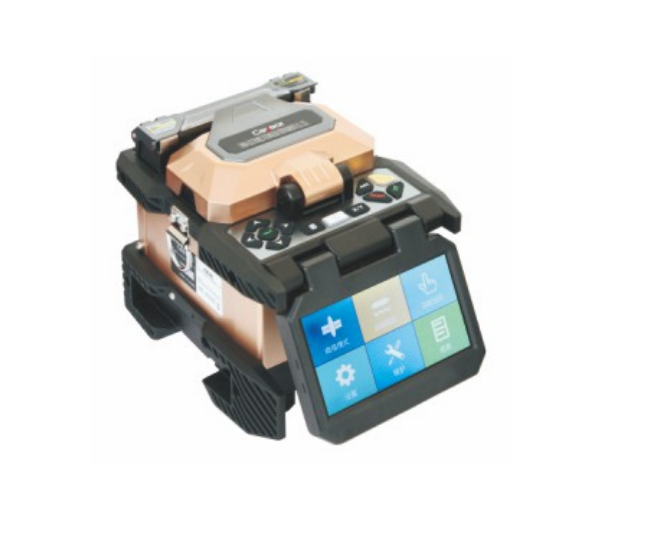

Ceyear 6481B Optical Fiber Fusion Splicer (4 motors)

Fiber Fusion Splicer : general optical fiber, rubber-covered fiber, and jumper conforms to ITU-T G.651~653, G.655, G.657

Fiber Diameter: cladding:80~150 μm ;coating:0.1~3mm

Cleaved Length: 5~16mm(covered fiber diameter≤250 μm) ; 10mm(covered fiber diameter: 0.25~3mm)

Splice Loss (typical): 0.03dB(SMF), (MMF), 0.04 dB(DSF), 0.04 dB(NZDSF)

Number of motor: 4

Alignment: cladding alignment, manual alignment

7s fast splicing, 18s highly efficient pyrocondensation

320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length

300 groups of fusion splicing modes, 100 groups of heating modes

10000 groups of fusion records, 64 images storage

Ceramic presser foot, ceramic V-groove, all-in-one fixture

GUI and touch screen design
