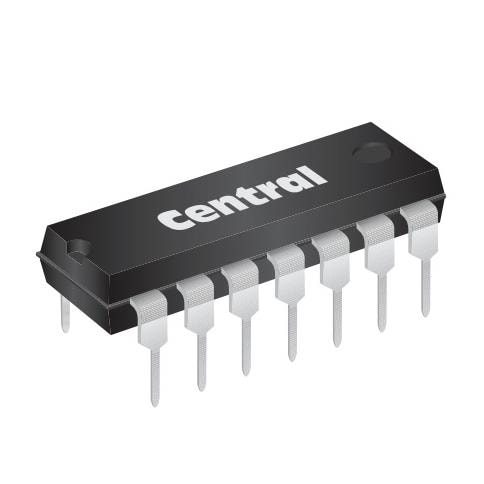

Central Semiconductor MPQ2222 PBFREE BJTs - Bipolar Transistors Small Signal Transistor

Unit Weight: 400 mg

Configuration: Quad

Mounting Style: Through Hole

Transistor Polarity: NPN

Pd - Power Dissipation: 1.9 W

DC Current Gain hFE Max: 300

Gain Bandwidth Product fT: 200 MHz

Emitter- Base Voltage VEBO: 5 V

Collector- Base Voltage VCBO: 60 V

Continuous Collector Current: 500 mA

Maximum DC Collector Current: 500 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 65 C

DC Collector/Base Gain hfe Min: 100

Collector- Emitter Voltage VCEO Max: 40 V

Collector-Emitter Saturation Voltage: 1.6 V
