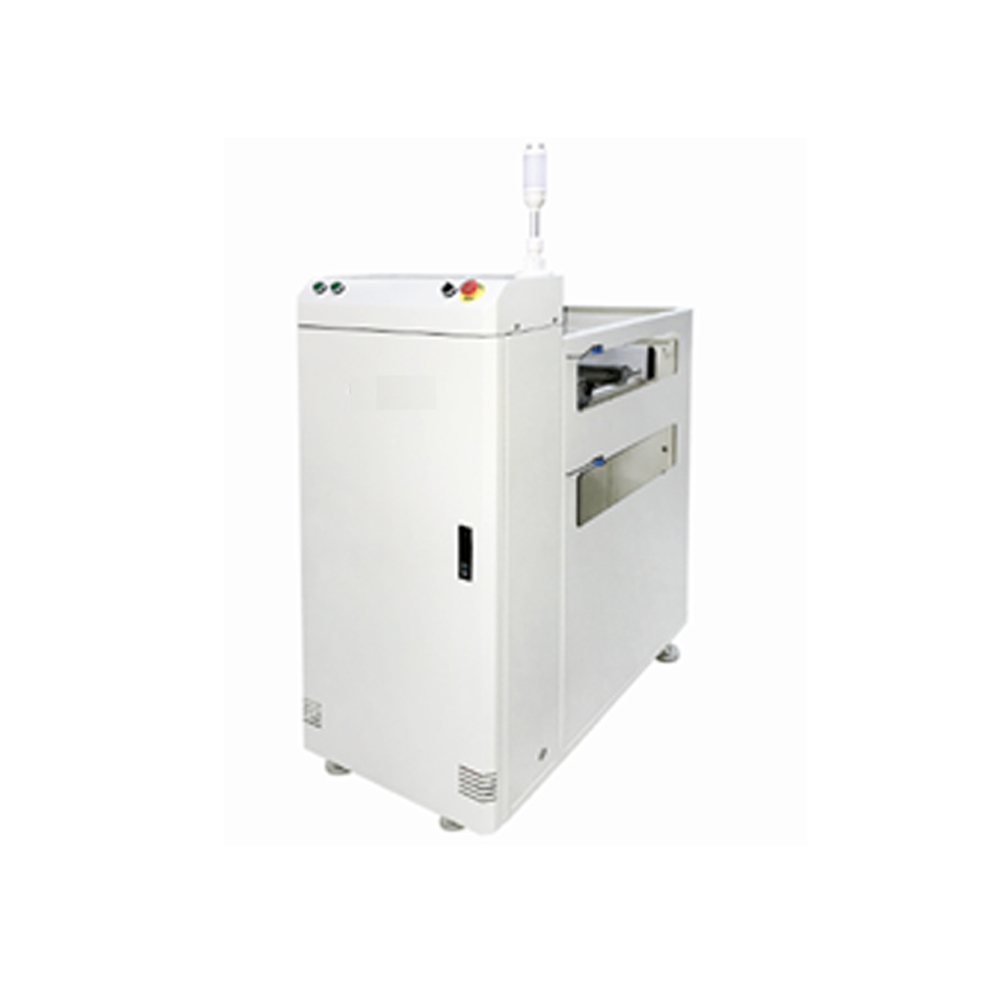

Censtar PD-L-BN PCB lifting conveyor (535*920*Hmm, 50 * 50-460 * 330mm)

Dimension(L*W*H):535*920*Hmm

PCB size(L*W):50*50-460*330mm

Quantity of rail:Single rail

Belt type:Nylon embroidered steel chain or oblate belt

Load bearing:3kg/PCB

Cycle time:Depends on lifting distance

Transport height:Custimzie

Power supply:AC 220V±10V, 50/60HZ

Power:Max 250VA

Screen size: 7 inch

PCB thickness :Minimum 0.4mm

Transport direction:L-R or R-L

CE: Yes

PLC:Yes

SMEMA:Yes

Weight:140kg

This equipment is used to adjust the height direction of the PCB board on the production line to different paths.

1.Enclosed design,safety enough;

2.Can rise and fall, machine height can be customized;

3.Top cover can be opened, it's easy to make maintenance;

4.Smooth and parallel width adjustment (leadscrew);

5.Speed can adjust;

6.Minimize transmission clearance between conveyor;

7.With SMEMA signal.
