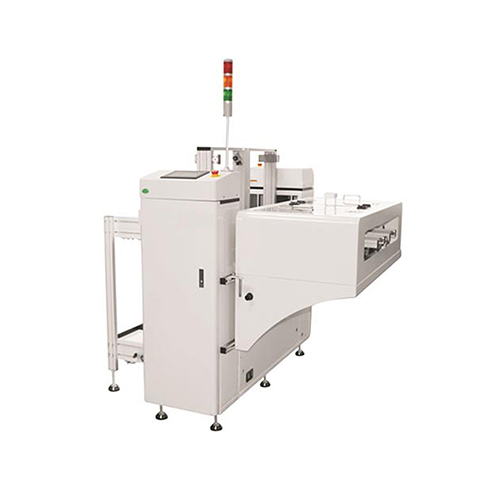

Censtar NL-M-N NG/OK Unloader (1800*1435*1250, 50*50-330*250)

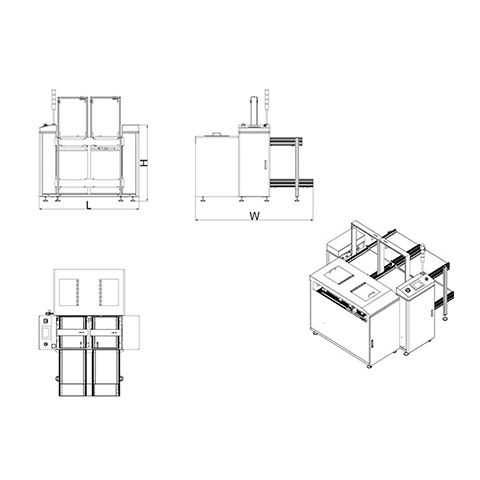

Dimension（mm）:1800*1435*1250

PCB size(mm): 50*50-330*250

Magazine（mm): 355*320*563

Magazine quantity: Up: 1: Down: 1

Mazagine change: Approx. 30 Seconds or specity

Indexing pitch: 10. 20. 30. 40mm selectable

Power supply: AC 220V±10V, 50/60HZ

Power: Max 300VA

Air pressure: 4-6bar

Air consumption: 10itr/min max

Transport height: 900±20(or custimzie)

PCB direction: L-R or R-L

Weight: 310kg

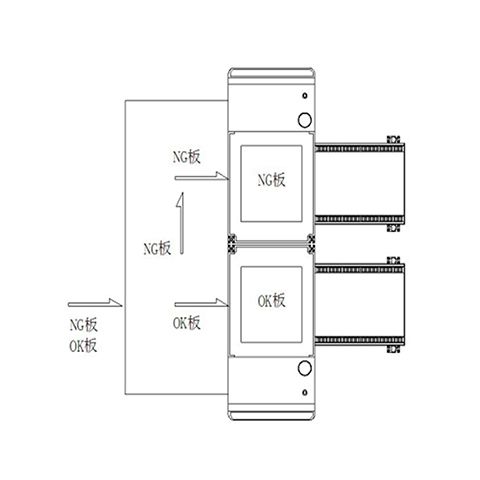

This equipment is used for the receiving operation of the PCB board of the SMT production line, and it is suitable for receiving the NG board and the OK board after the AOI behind the reflow.

Features

1.Panasonic PLC+Touch screen control , easy to operate.

2.Design with firm structure.

3.The upper and lower air clamps ensure the location of the material box accurately.

4.Special gas path design ensures that the PCB panel is not pushed.

5.With SMEMA signal.
