Censtar LF-M-BN L shape PCB loader (1150*1150*1205mm, 50*50-330*250mm)

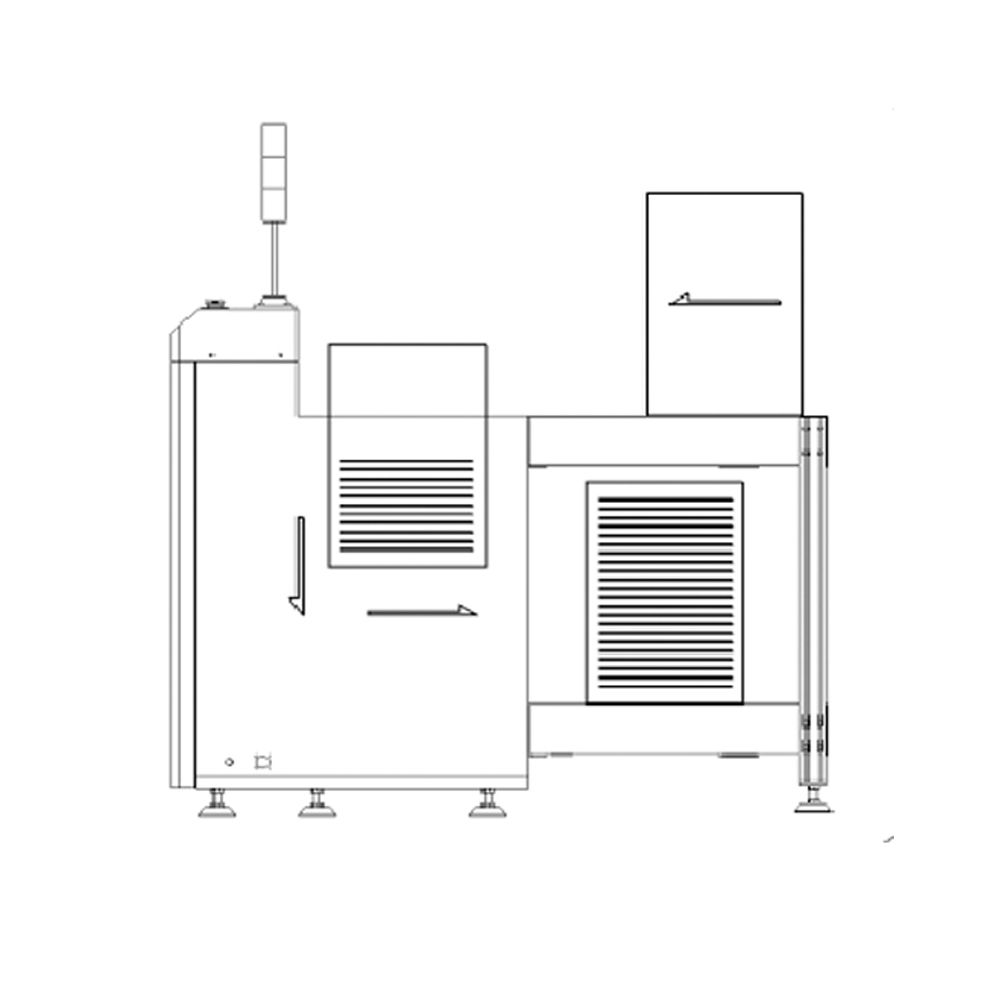

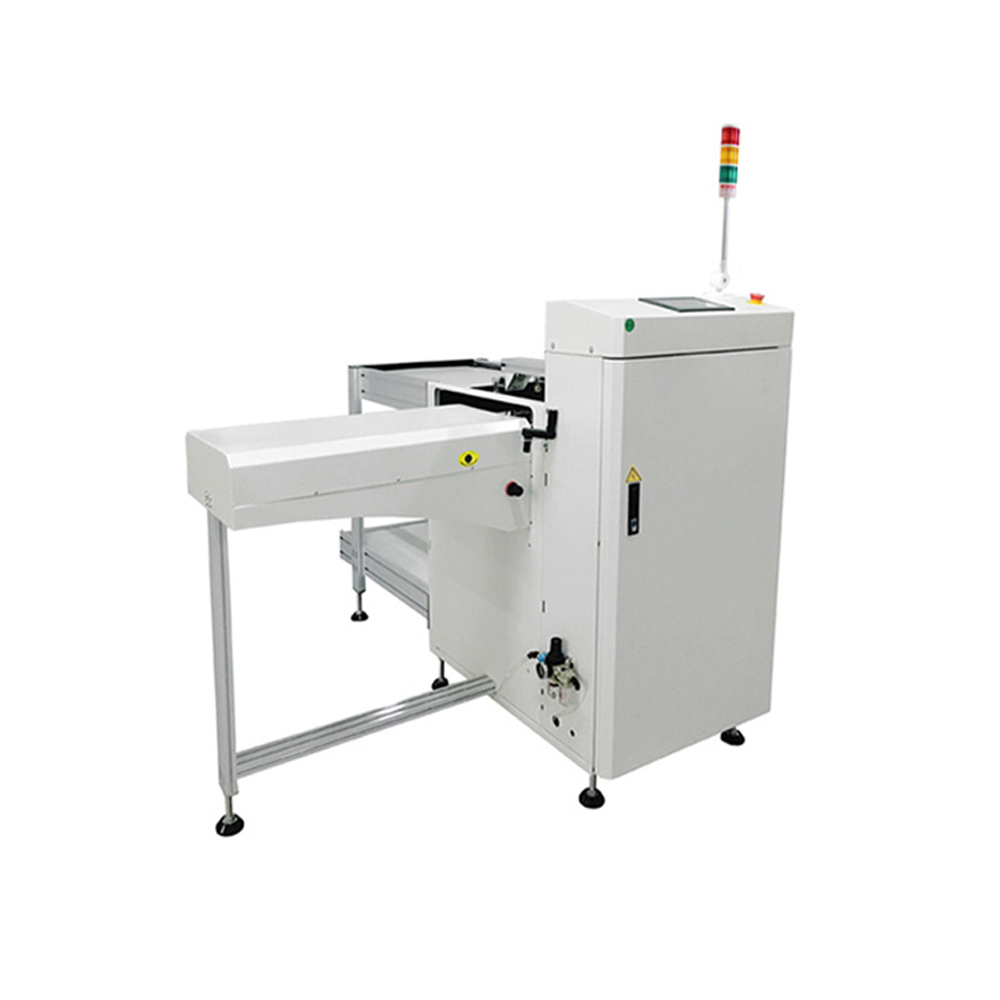

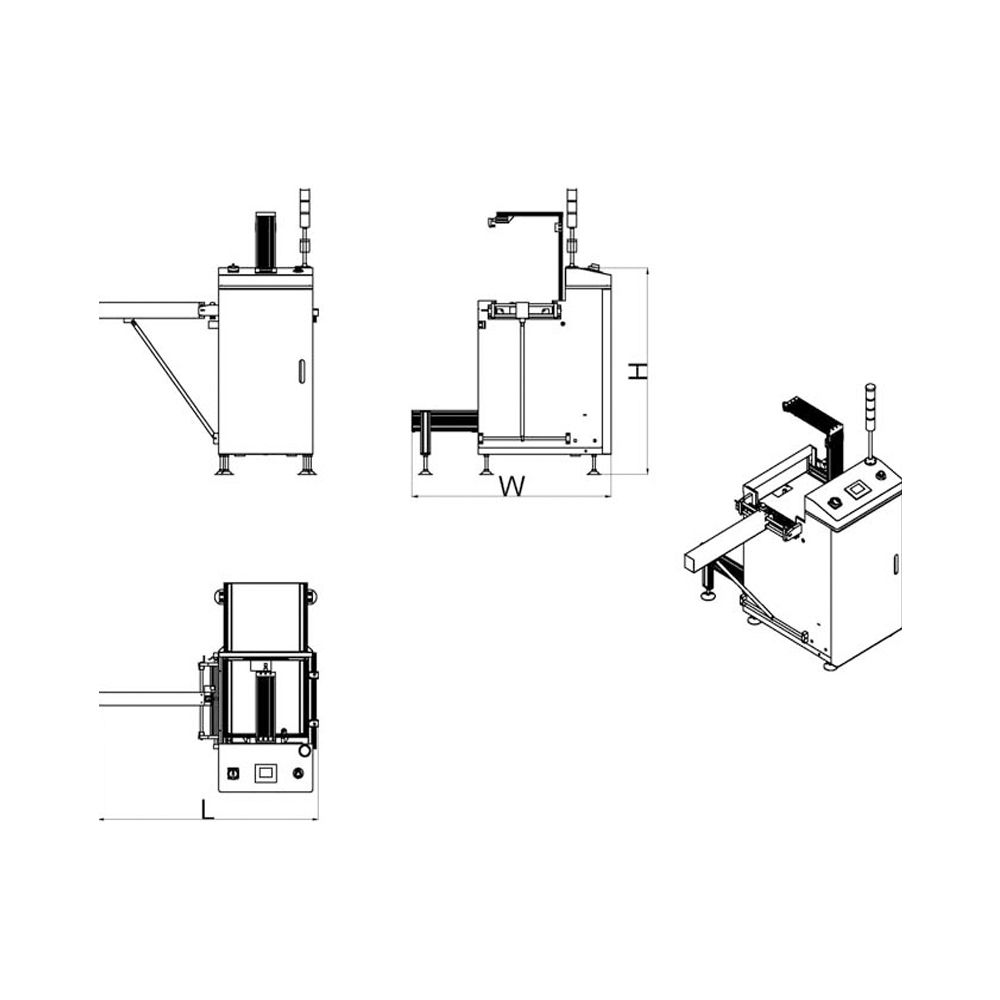

Dimension(L*W*H): 1150*1150*1205mm

PCB size(L*W): 50*50-330*250mm

Magazine size(L*W*H): 355*320*563mm

Quantity of rail: Single rail

No. of magazine: Loader: upper 1, lower 2

Conveyor belt of magazine: Plastic strips

Transport height: 900±20mm(or custimzie)

Cycle time: 6 Seconds or specity

Magazine change time: 30 Seconds or specity

Indexing pitch: 10. 20. 30. 40mm selectable

Power supply: AC 220V±10V, 50/60HZ

Power: Max 300VA

Air prssure: 4-6bar

Air consumption: 10itr/min max

Screen size: 7 inch

PCB thickness : Minimum 0.6mm thickness

Transport direction: L-R or R-L

CE : Yes

PLC: Yes

SMEMA: Yes

Weight: 160kg

This equipment is used for PCB board loading operation in SMT production line .

Features

1.User friendly ""soft touch"" LED membrance control panel or touch screen is optional.

2.Strong ,firm and stable design.

3.Up&down pneumatic clamps to ensure the magazine rack position.

4.Special gas circuit design to ensure no PCB breakage.

5.L shape design, save the whole production line length.

6.With SMEMA signal.
