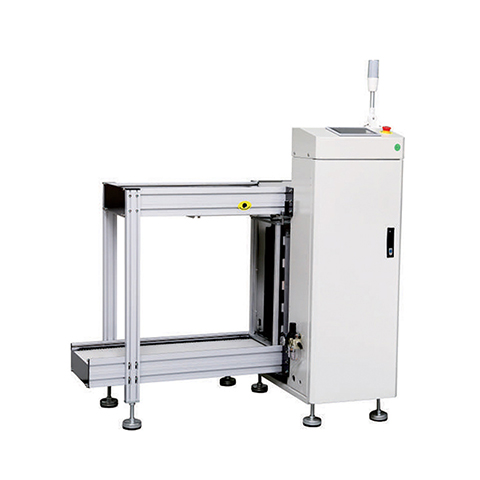

Censtar LD-XXL-BN PCB magazine loader (2065*1230*1250mm, 50*50-610*460mm)

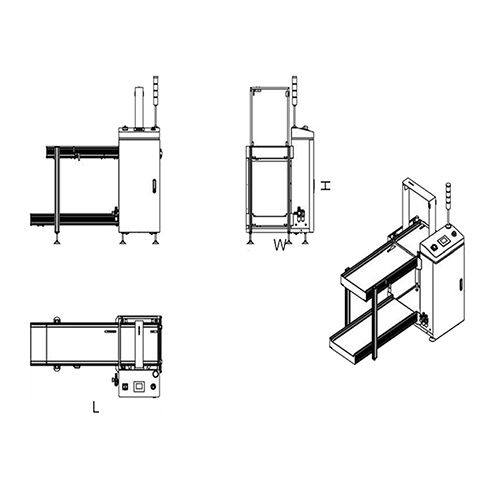

Dimension（mm): 2065*1230*1250

PCB size(mm): 50*50-610*460

Magazine size(mm): 630*530*563

Magazine quantity: Up: 1: Down: 2

Time feed PCB: Approx. 6 Seconds or specity

Mazagine change time: Approx. 30 Seconds or specity

Indexing pitch: 10. 20. 30. 40mm selectable

Power supply: AC 220V±10V, 50/60HZ

Power: Max 300VA

Air prssure: 4-6bar

Air consumption: 10itr/min max

Transport height: 900±20mm(or customer specified)

PCB direction: L-R or R-L (optional)

Board thickness : Min. 0.6mm thickness

PCB weight : ≤2KG

Weight: 350kg

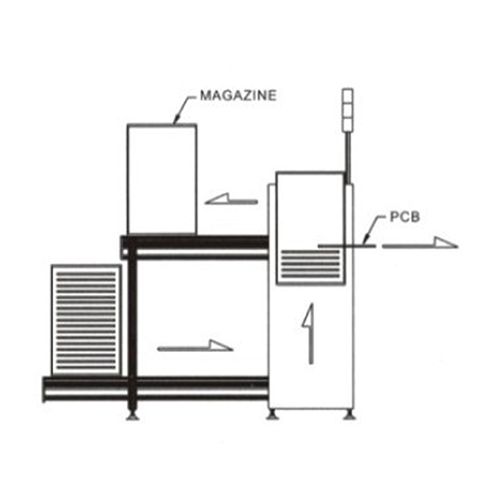

This equipment is used for PCB board loading operation in SMT production line.

Features

1.Strong, firm and stable design

2.User friendly'soft touch' LED membrance control panel

3.Top & bottom pneumatic clamps to secure magazine rack

4.No PCB breakage guaranty because of special gas circuit design

5.Automatical diagnosing fault code display function

6.Wear-resista nt cable and have long service life

7.SMEMA compatible
