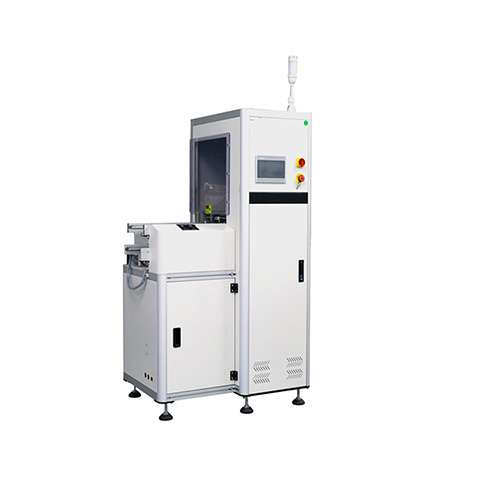

Censtar BN-M-TN Ng Buffer Conveyor (1000*910*1600, 50*50-330*250)

Dimension(mm): 1000*910*1600

PCB size（mm): 50*50-330*250

Number of stocks: 15pcs

Cycle time: 10s

Power supply: AC 220V±10V, 50/60HZ

Power: Max 250VA

Air pressure: 4-6bar

Air consumption: 10itr/min max

Transport height: 900±20mm(or customer specified)

PCB direction: L-R or R-L (optional)

Belt type: 4MM anti-static flat belt

Weight: 260kg

This device can buffer the NG and OK boards from AOI or SPI inspection machines. The OK board will flow into the next program, and the NG board will flow to the upper layer of the machine and send it to the machine for manual confirmation.

Features

1.PLC + LED touch screen control, easy to operate.

2.FIFO: First in, First out, LIFO:Last in, First out and Pass mode.

3.Smooth and precise width adjustment (leadscrew).

4.Fast, smooth and precise search and location.

5.Small footprint.

6.With SMEMA signal.
