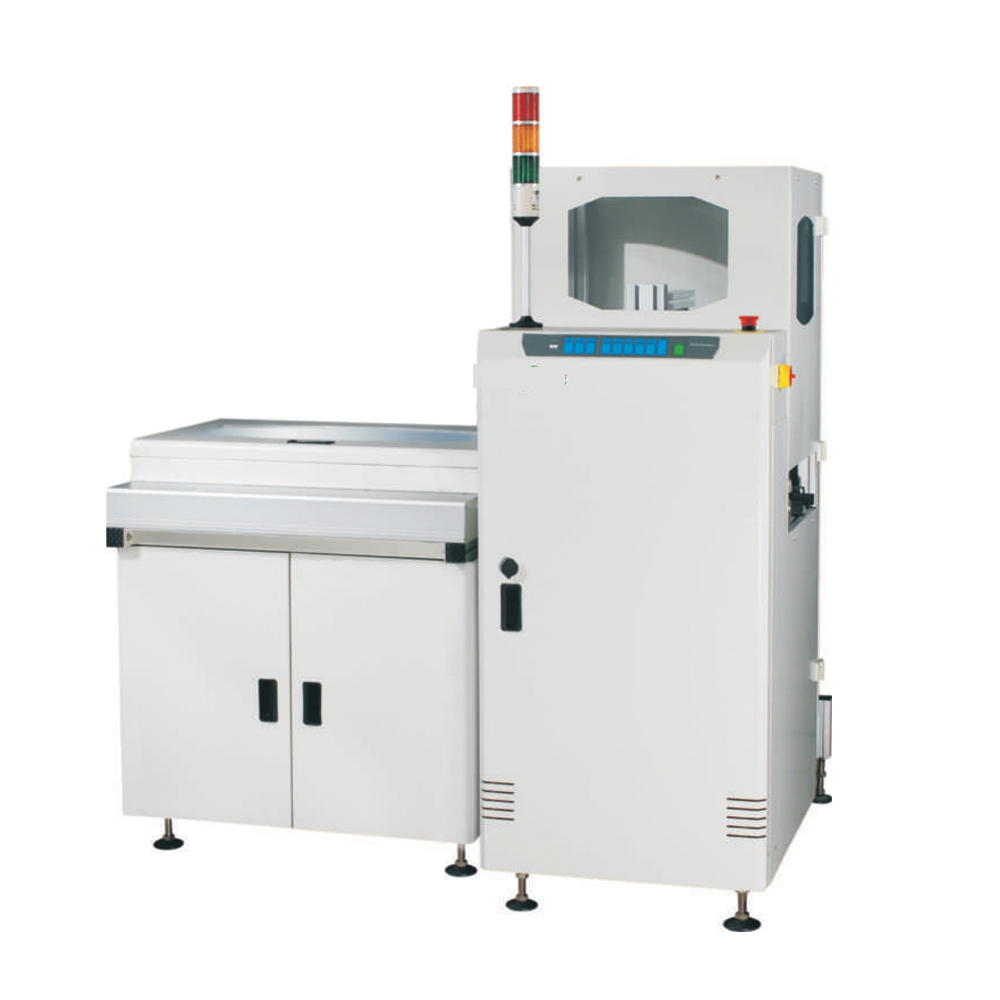

Censtar BM-M-TN PCB Magazine Buffer (1150*1150*1205mm, 50 * 50-330 * 250mm)

Dimension(L*W*H): 1150*1150*1205mm

PCB size(L*W): 50*50-330*250mm

Magazine size(L*W*H): 355*320*563mm

Maximum PCBs capacity: 50pcs or specify

No. of magazine: Loader: upper 1, lower 1

Quantity of rail: Single rail

Belt type: 4mm flat belt

Load bearing: 2kg/PCB

Transport height: 900±20mm(or custimzie)

Cycle time: 10 Seconds or specity

Indexing pitch: 10. 20. 30. 40mm selectable

Power supply: AC 220V±10V, 50/60HZ

Power: Max 250VA

Air prssure: 4-6bar

Air consumption: 15itr/min max

Screen size: 7 inch

PCB thickness : 0.6-4mm

Transport direction: L-R or R-L

CE: Yes

PLC: Yes

SMEMA: Yes

Weight: 160kg

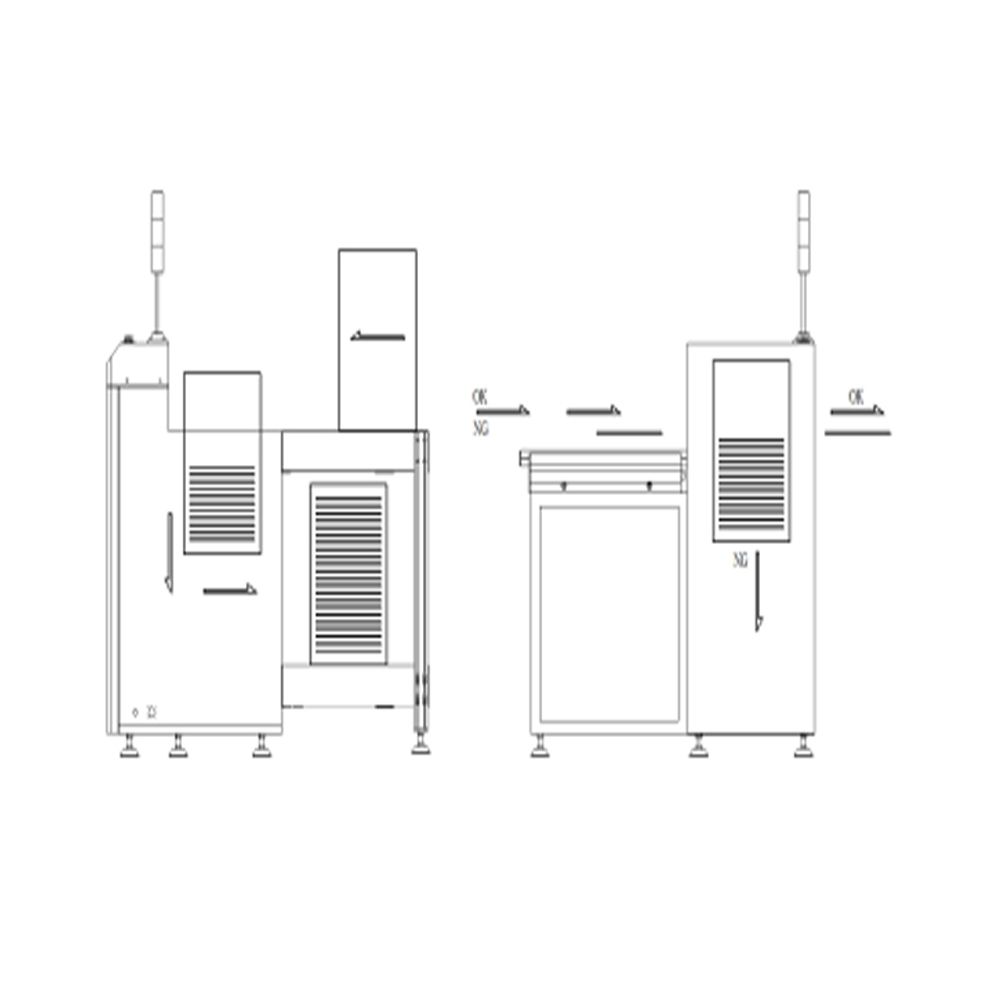

This equipment is used after AOI, and the NG and OK boards are separated into boxes and temporarily stored.

Features

1.PLC+LED touch screen controller, easy to operate.

2.The upper and lower air clamps ensure the location of the magazine accurately.

3.Special gas path design ensures that the PCB panel is not pushed.

4.Six modes of operation:FIFO( first in first out),LIFO( last in first out), Loader, Unloader, NG board BUFFER and PASS.

5.Fast, smooth and precise search and location.

6.With SMEMA signal.
