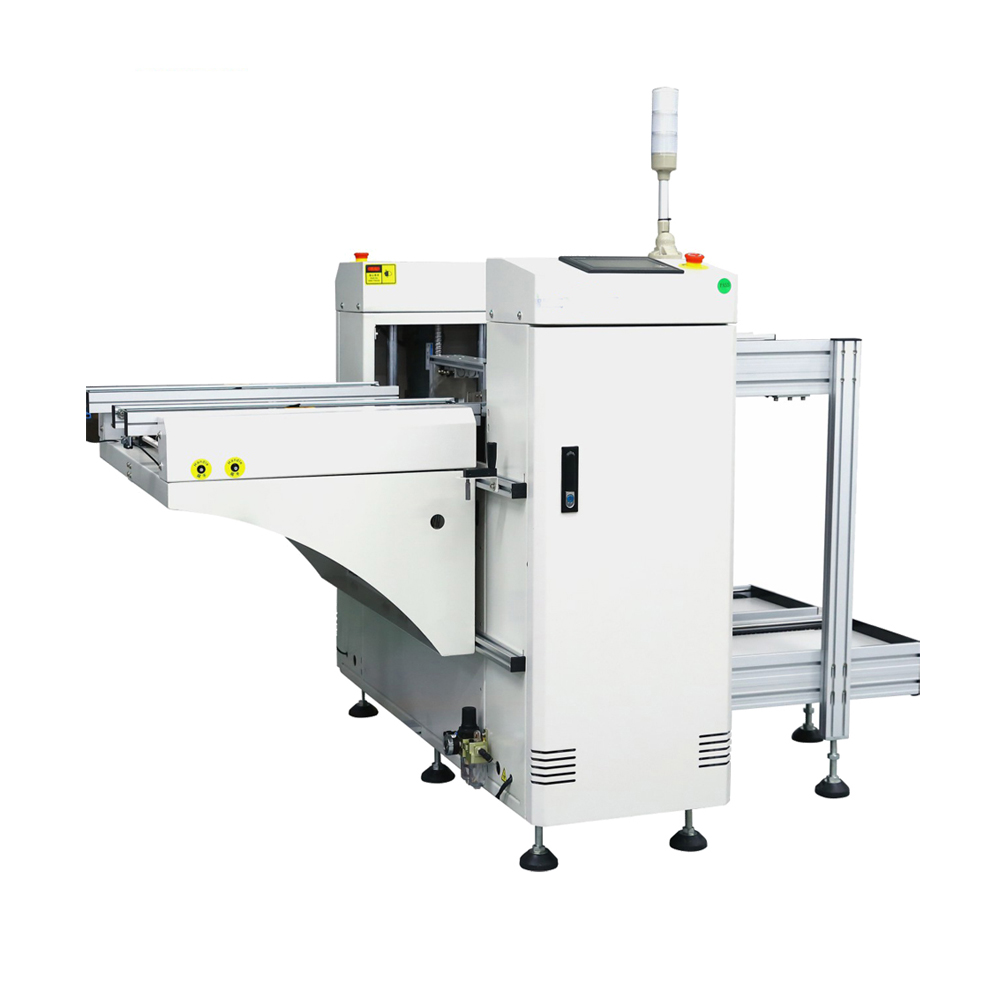

Censtar BH-L-N Dual Rail PCB Unloader (2065*1690*1250mm, 50*50-445*330mm)

Dimension(L*W*H): 2065*1690*1250mm

PCB size(L*W): 50*50-445*330mm

Magazine size(L*W*H): 460*400*563mm

Quantity of rail: Dual Rail

Fixed conveyor mode: 1 and 4 rail fixed,2 and 3 adjustable

No. of magazine: Loader: upper 1, lower 1

Conveyor belt of magazine: Plastic strips

Belt type: 4mm flat belt

Load bearing: 2kg/PCB

Transport height: 900±20mm(or custimzie)

Cycle time: 8 Seconds or specity

Indexing pitch: 10. 20. 30. 40mm selectable

Power supply: AC 220V±10V, 50/60HZ

Power: Max 300VA

Air prssure: 4-6bar

Air consumption: 10itr/min max

Screen size: 7 inch

PCB thickness: Minimum 0.6mm thickness

Transport direction: L-R or R-L

CE: Yes

PLC: Yes

SMEMA: Yes

Weight: 350kg

This equipment is used for the receiving operation of the PCB board of the dual-track SMT production line.

Features

1.Panasonic PLC+Touch screen control , easy to operate.

2.Design with firm structure.

3.The upper and lower air clamps ensure the location of the material box accurately.

4.Special gas path design ensures that the PCB panel is not pushed.

5.With SMEMA signal.
