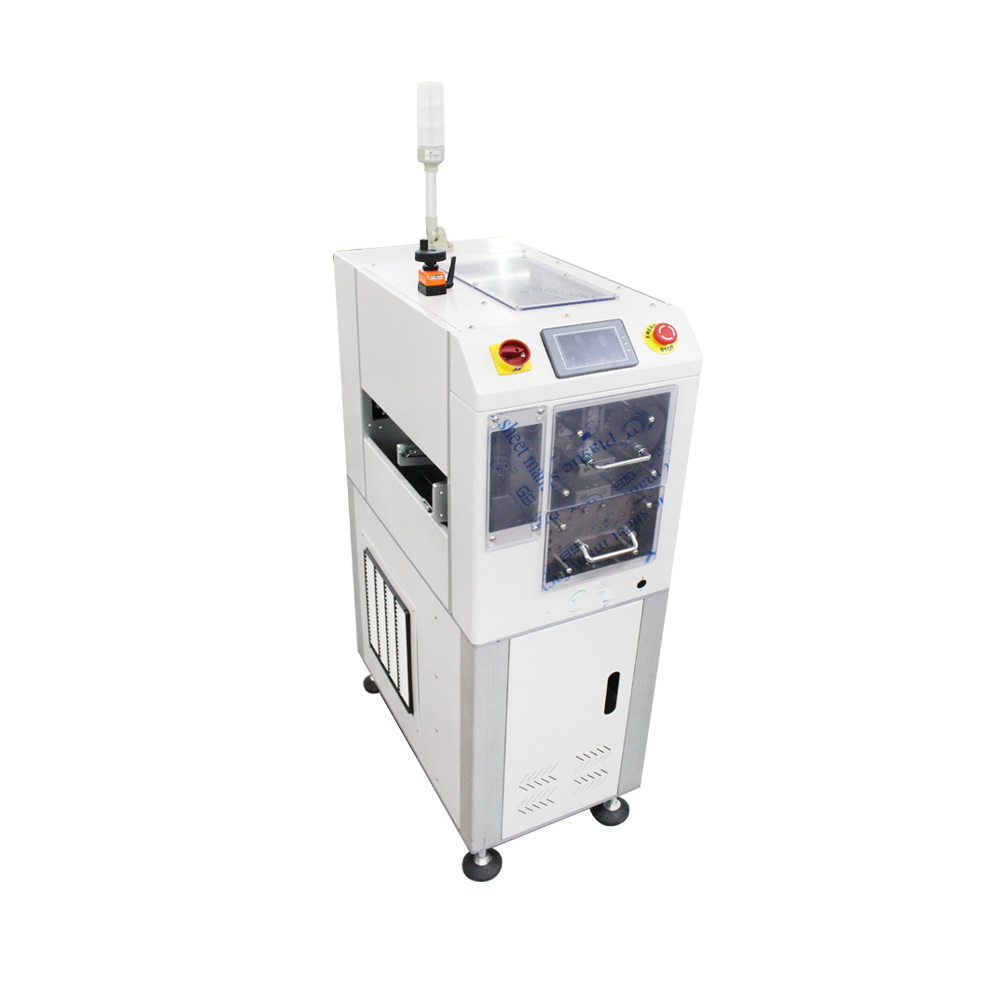

Censtar B-QXD01-XL-TN PCB Cleaner Conveyor

Dimension(mm): 500*770*1114

PCB size（mm): 50*50-530*460

Speed: 0-9m/min adjustable

Power supply: AC 1P 220V

Power: Max.300VA

Air prssure: 4-6bar

Air xonsumption: Max.10L/Min

Transport height: 900±20mm(or customer specified)

PCB direction: L-R or R-L (optional)

Weight: 120kg

This unit can remove glass fiber, dust particles, etc. on top surface of PCB before solder paste printing, and improve production yield. Especially suitable for PCB which is mounted extremely small components.

Features

1.Touch screen controller, easy to operate.

2.Parallel and smooth width adjustment(leadscrew).

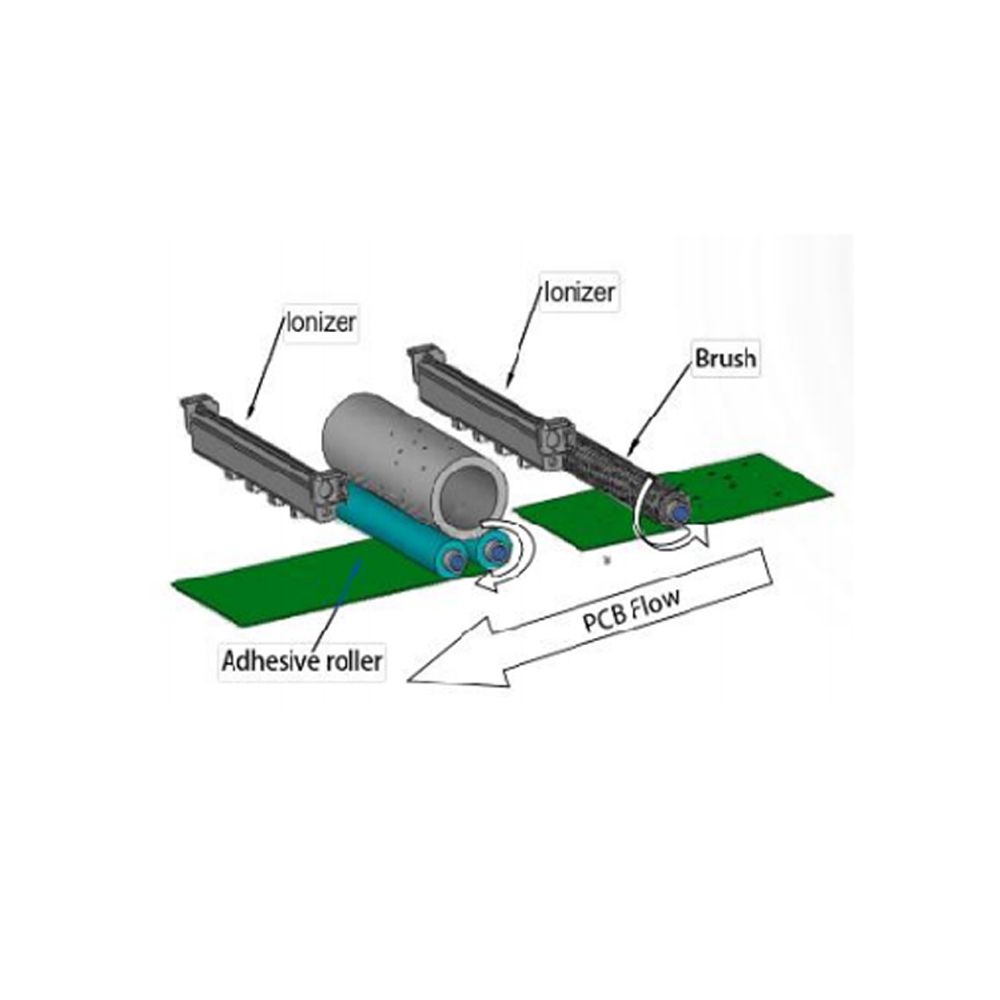

3.Multiple dust removal design: ion air rod (blowing ion air) +1 group of spiral brushes+vacuum system +1 group of dust sticking drum +.

4.vacuum dust collection, the dust removal efficiency can reach 99%.

5.Fully enclosed design ensures operational safety level.

6.Smaller footprint.

7.With SMEMA port.
