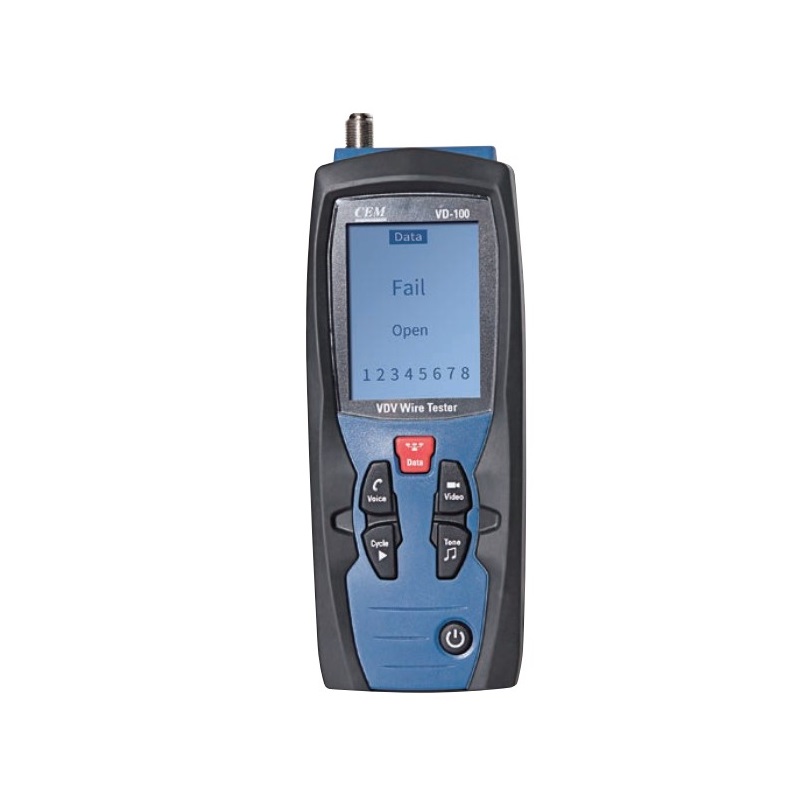

CEM VD-100 Wire Tester (305m)

Maximum Coax Cable Length: 1000 feet (305m)

Minimum Cable Length for Split Pair Detection: 1.6 feet (0.5m)

Maximum Coax Cable Resistance: 100 ohms maximum DC

Maximum Voltage between any two pins without damage: 60V DC or 55V AC

Humidity: 10% to 90%, non-condensing

Operating Temperature: 32°F to 122°F (0°C to 50°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C

Dimensions:152mm x 61mm x 35mm

Weight: 230g

Accessories: Two “AA” batteries, gift box with carrying case.
