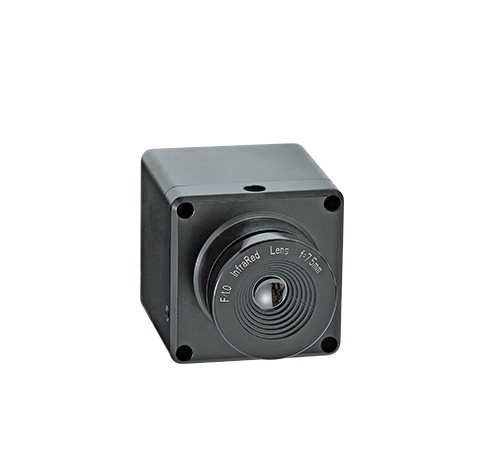

CEM UIR80 Professional Thermal Imaging Camera (80x80px, 3.78mrad,-20~350°C)

Imaging and optical data

IR Resolution: 80x80

Focal Plane Array: Uncooled microbolometer/8~14um

Field of View: 17x17

Focal length: 9mm

Spatial resolution: 3.78mrad

NETD(@25 O C,F#1.0): <0.1 ℃ 100mK

Image Frequency/ Focus: 50Hz/ Manual

Measurement

Object temperature range: –20 to 150°C (–4 to 302°F)

0 to 350°C (32 to 662°F)

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Image adjustment

Color palettes: Grey/Grey Inverted/IRON/Rainbow

Brightness & contrast adjust: Auto/manual

Imageing Algorithm: Intelligent image enhancement

Interfaces

Video output/ Digital output: Standard PAL/ 16 bit LVCMOS

Communication interface: RS-232,UART(3.3V)

Power/ Power consumption: 9~12 VDC/ <1.8W @25 ℃

Options Lens

11mm: No

22mm: 8 ° x 8 °

33mm: No

38mm: No

Size（HxWxD): 48x48x71mm

Weight: 178g
