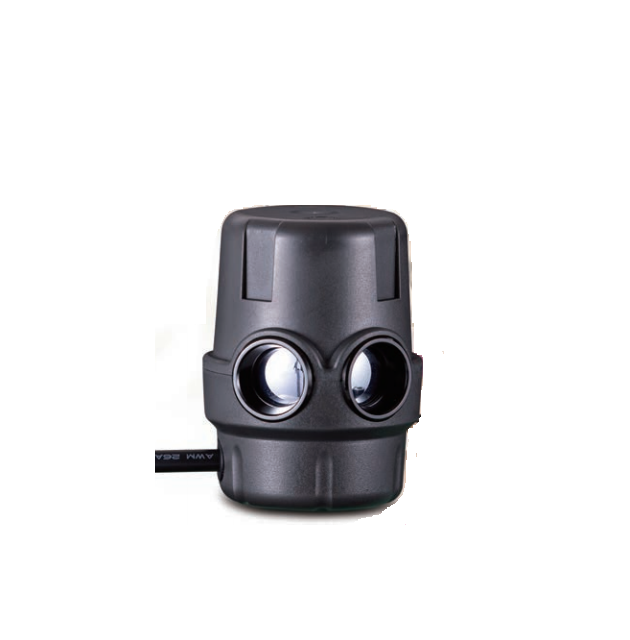

CEM IR-485 Four-probe High-precision Infrared Thermometer (30.00-45.00°C)

IR temperature

Four probes

Measuring range: 30.00-45.00°C

Accuracy: 36.00-39.00C ±0.2°C

30.00-36.00C/ 39.00-45.00 ±0.3°C

Resolution: 0.01°C

Communication (RS485)

RS485 communication

An incubator can connect with 8-12 modules

Two wire system (A,B), 12V output

International standard-MODBUS protocol

Baud rate 19200bps, 8-data bits+1- stop bit, No

Calibration

Data transmission: 2s/Group

Operation environment

Operating temperature : 36-38.5°C

Operating humidity: 40%-70%

Size (HxWxD): 82mm x 58mm x 168mm

Weight: 63g

Accessories:

DC 12V, Carrying case and Gift box

Datasheet
