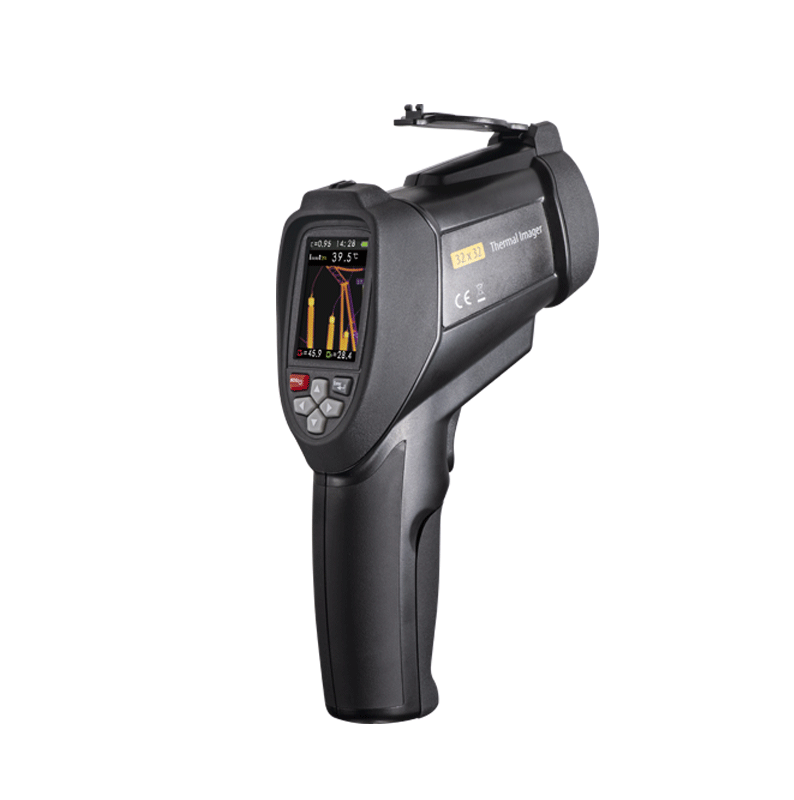

CEM DT-9868S Thermal Imager (32x32 pixels, -20°C~600°C)

Feature

Camera 640*480 pixel

2.2" TFT 320x240 Pixels color LCD display

Imaging and optical data

Thermal sensitivity (NETD): 100 mK

Image frequency: 9Hz

Detector data

Detector type: Uncooled hyper-thin pyroelectric ceramic

Spectral range: 8-14μm

IR resolution: 32 x 32 pixels

Object temperature range: -20°C to 600°C (-4°F to 1112°F)

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Spotmeter: Center spot

Emissivity adjustable: 0.10~1.0 Adjustable

Micro SD memory card: MAX. support 8GB

Field of View: 33° x 33°

Color palettes: GRAY/GRAY IRON/ IRON/RAINBOW

Image storage format: Standard BMP, including measurement data, on

memory card > 1000 pictures
