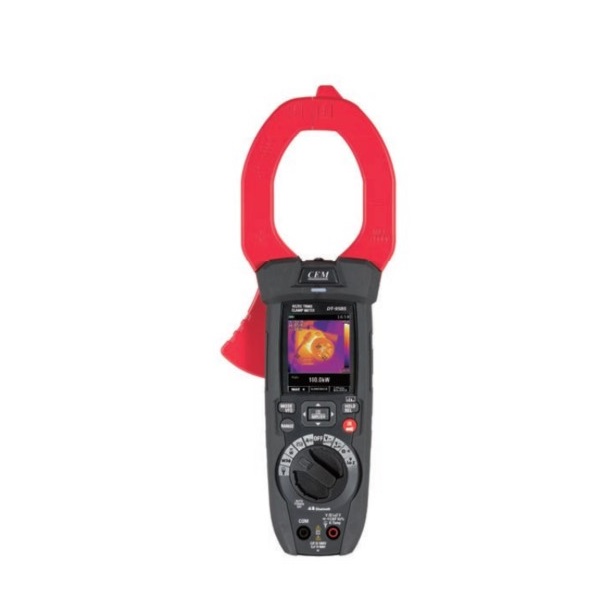

CEM DT-9585 Power Quality Clamp Meters with InfraRed Thermal Imager (AC/DC:2000A)

Thermal Imager

IR resolution: 80x80 pixels

Field of View (FOV): 21° x 21°

Thermal sensitivity/NETD: <0.08°C/80mK

Image frequency: 50Hz

Object temperature range: -20-260°C (-4-500°F)

Spectral range: 8-14 µm

Color palettes: Iron/Rainbow/Grey/Grey Inverted/Feather

Accuracy: ±2°C (±3.6°F) or ±2% of reading *

True RMS Multimeter Functions

DCV: 1500V / 100mV / ±(0.5% + 5d)

ACV: 1000V / 100mV / ±(1.2% + 5d)

DCA: 2000A / 0.01A / ±(2% + 8d)

ACA: 2000A / 0.01A / ±(2.5% + 5d)

Flexible A: 3000A / 0.01A / ±(3.0%+5d)

Resistance: 60MΩ / 0.1Ω / ±(0.8% + 5d)

Frequency: 10kHz / 0.01Hz / ±(0.2% + 5d)

Inrush Current: 2000A / 1A

Temperature: 1000°C / ±(1.5%+3°C)

Diode & Continuity:Yes

Voltage and Current Harmonics

Harmonic order Fundamental frequency (45Hz ~65Hz):

DC / ±(5.0%+20d)

H1~H25 / ±(5.0%+10d)

H25~H30 / ±(10%+5d)

THD% / ±(8.0%+10d)

Power

DC Power: 999.9KW / ±(3.5%+5d)

Active AC Power: 999.9KW / ±(2.0%+5d)

Apparent AC Power: 999.9KWA / ±(2.0%+5d)

Active Energy AC: 999.9KWh / ±(2.0%+5d)

Power Factor: -1.0 ~ 0, 0 ~ 1.0 / ±(3% + 1d)

Displacement power factor: 0.3~1 / ±3°

Size (HxWxD): 95mm x 270mm x 42mm

Weight: 550g

Accessories:

Test leads, gift box with carrying case, Temperature probe Li-ion rechargeable battery, AC Charger
