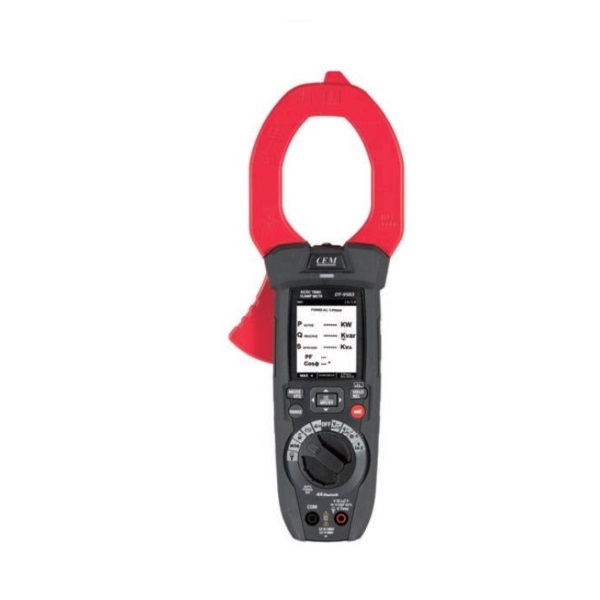

CEM DT-9583 AC/DC Clamp Meters (AC/DC 2000A)

True RMS Multimeter Functions

DCV: 1500V / 100mV / ±(0.5% + 5d)

ACV: 1000V / 100mV / ±(1.2% + 5d)

DCA: 2000A / 0.01A / ±(2% + 8d)

ACA: 2000A / 0.01A / ±(2.5% + 5d)

Flexible A: 3000A/0.01A/±(3.0%+5d)

Resistance: 600kΩ/0.1Ω/±(0.8% + 5d)

Frequency: 10kHz/0.01Hz/±(0.2% + 5d)

Inrush Current: 2000A/1A

Temperature: 1000°C/±(1.5%+3°C)

Diode & Continuity:Yes

Voltage and Current Harmonics

Harmonic order Fundamental frequency (45Hz ~65Hz):

DC / ±(5.0%+20d)

H1~H25 / ±(5.0%+10d)

H25~H30 / ±(10%+5d)

THD% / ±(8.0%+10d)

Power

DC Power: 999.9KW; ±(3.5%+5d)

Active AC Power: 999.9KW; ±(2.0%+5d)

Apparent AC Power: 999.9KWA; ±(2.0%+5d)

Active Energy AC: 999.9KWh; ±(2.0%+5d)

Power Factor: -1.0 ~ 0, 0 ~ 1.0; ±(3% + 1d)

Displacement power factor: 0.3~1; ±3°

Size (HxWxD): 95mm x 270mm x 42mm

Weight: 550g

Accessories:

Test leads, gift box with carrying case, Temperature probe Li-ion rechargeable battery, AC Charger

Datasheet
