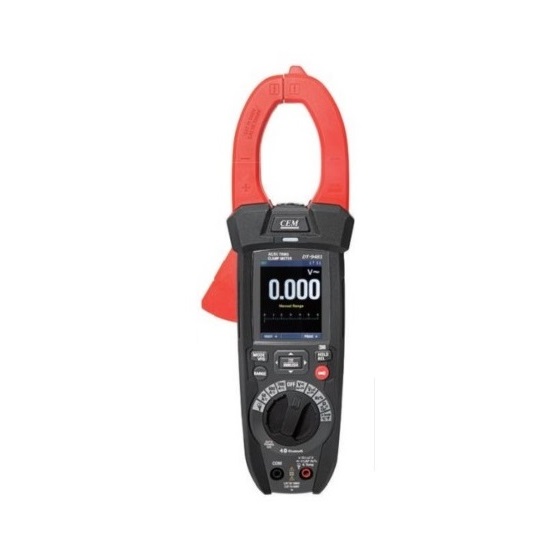

CEM DT-9481 Professional AC/DC True RMS Clamp Meters (True RMS, AC/DC 1000A)

Voltage DC (Maximum; Max. resolution; Best Accuracy): 1500V; 100mV; ±(0.5% + 5d)

Voltage AC (Maximum; Max. resolution; Best Accuracy): 1500V; 100mV; ±(1.2% + 5d)

Current DC (Maximum; Max. resolution; Best Accuracy): 1000A; 0.01A; ±(2% + 8d)

Current AC (Maximum; Max. resolution; Best Accuracy): 1000A; 0.01A; ±(2.5% + 5d)

Flexible A (Maximum; Max. resolution; Best Accuracy): 3000A; 0.01A; ±(3.0%+5d)

Resistance (Maximum; Max. resolution; Best Accuracy): 60MΩ; 0.1Ω; ±(0.8% + 5d)

Capacitance (Maximum; Max. resolution; Best Accuracy): 100mF; 0.01nF; ±(3.0% + 5d)

Frequency (Maximum; Max. resolution; Best Accuracy): 10MHz; 0.01Hz; ±(0.2% + 5d)

Inrush Current (Maximum; Max. resolution; Best Accuracy): 1000A; 1A

Temperature (Maximum; Max. resolution; Best Accuracy): 1000°C/1832°F; ±(1.5%+3°C)

Diode & Continuity: Yes

Interface: Bluetooth

Power Supply: Li-ion rechargeable battery

Size (HxWxD): 95mm x 270mm x 42mm

Weight: 550g

Accessories:

Test leads, gift box with carrying case, Temperature probe, Li-ion rechargeable battery, AC Charger
