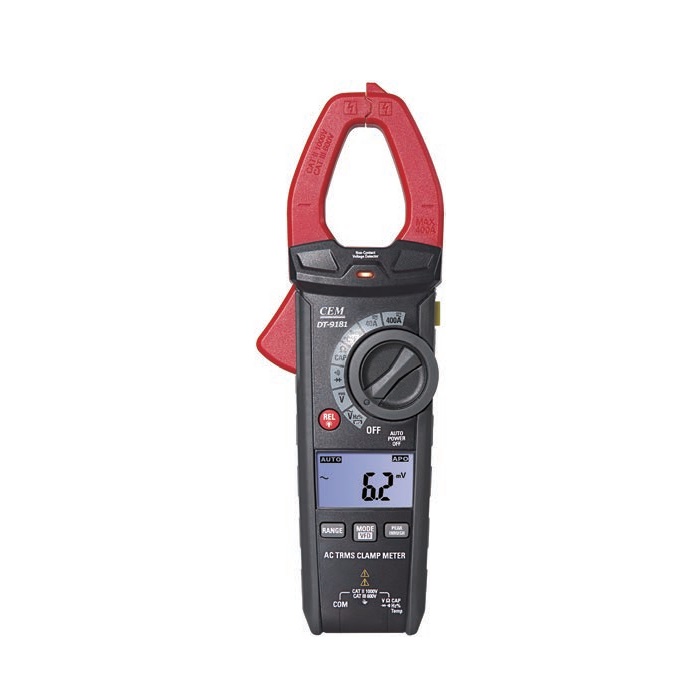

CEM DT-9181 AC/DC True RMS Clamp Meters (True RMS, AC/DC 400.0A)

Max jaw opening: 1.18" (30mm)

Voltage DC (Max Range; Basic Accuracy): 1000V; ±(0.5%+2d)

Voltage AC (Max Range; Basic Accuracy):1000V; ±(1.0%+5d)

Voltage VFD: 600V

Current DC (Max Range; Basic Accuracy): 400.0A; ±(2.0%+5d)

Current AC (Max Range; Basic Accuracy): 400.0A; ±(2.5%+8d)

Resistance (Max Range; Basic Accuracy): 40MΩ; ±(3.0%+5d)

Temperature (Max Range; Basic Accuracy): 1000°C/ 1832°F; ±(1.0%+3d)

Capacitance (Max Range; Basic Accuracy): 100mF; ±(2.5%+5d)

Frequency (Max Range; Basic Accuracy): ACV 100kHz; ±(0.5%+2d)

Inrush Current (Max Range; Basic Accuracy): 400.0A; ±(1.5%+2d)

Diode test: Test Current <0.5mA MAX 3V

Continuity checkBuzzer sounds at 50Ω

NCV Function: Yes

Size (HxWxD): 225mm x 72mm x 40mm

Weight: 294g

Accessories:

Test leads, gift box with carrying case, Temperature probe (except 9180C) and 1.5V AAA x 3 batteries
