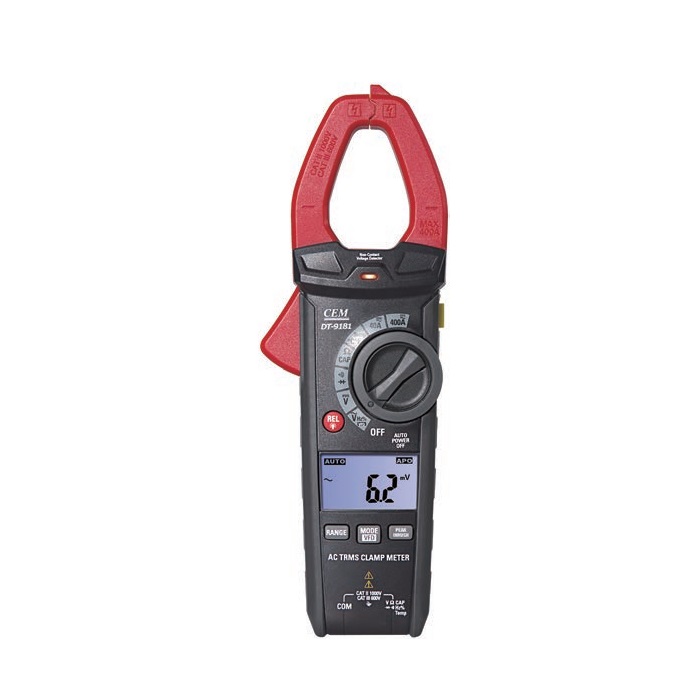

CEM DT-9180C AC True RMS Clamp Meters with NCV Detector (True RMS, NVC, AC 400.0A)

Max jaw opening: 1.18" (30mm)

Voltage DC (Max Range; Basic Accuracy): 600V; ±(0.5%+2d)

Voltage AC (Max Range; Basic Accuracy):600V; ±(1.0%+5d)

Current AC (Max Range; Basic Accuracy): 400.0A; ±(2.5%+8d)

Resistance (Max Range; Basic Accuracy): 40MΩ; ±(3.0%+5d)

Capacitance (Max Range; Basic Accuracy): 4mF; ±(2.5%+5d)

Frequency (Max Range; Basic Accuracy): ACV 10kHz; ±(0.5%+2d)

Diode test: Test Current <0.5mA MAX 2V

Continuity: check Buzzer sounds at 50Ω

NCV Function: Yes

Size (HxWxD):225mm x 72mm x 40mm

Weight: 294g

Accessories:

Test leads, gift box with carrying case, 1.5V AAA x 3 batteries

Datasheet
