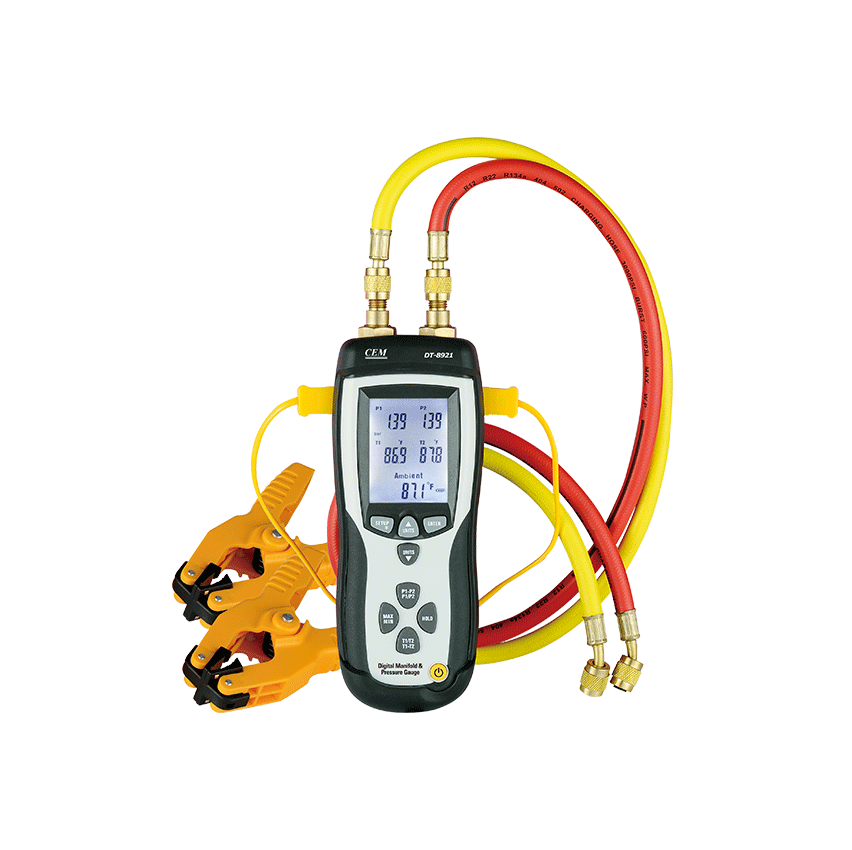

CEM DT-8921 HVAC Superheat and Subcooling Analyzer (-40~204ºC, 0~500 psi)

Temperature

Range (temperature): -40ºC to 204ºC/-40ºF to 400ºF

Resolutions: 0.1º

Sensor type: Dual k-type thermocouple input

Accuracy:±1ºC/±1.8ºF

Pressure and vacuum

Working range (pressure):0 to 500 psi; 0 to 4000 kPa

Resolutions: 0.1psi or kPa, 0.1”Hg or cmHg vac.

Accuracy: ±1 psi/±6.9 kPa

Sensor breakdown pressure: 800psi (5500 kPa)

Superheat

Range (temperature): 0ºF to 80ºF; 0ºC to 27ºC

Resolutions: 0.1º

Accuracy: ±1ºC/±1.8ºF

Subcooling

Range (temperature): 0ºF to 80ºF; 0ºC to 27ºC

Resolutions: 0.1º

Accuracy: ±1ºC/±1.8ºF

Size(HxWxD): 212mm x 78mm x 51mm

Weight: 338g

Accessories : Li battery, K-type thermocouple, Gift box.
