CEM DT-876H InfraRed Imager Thermometer (32x32, -20°C~600°C)

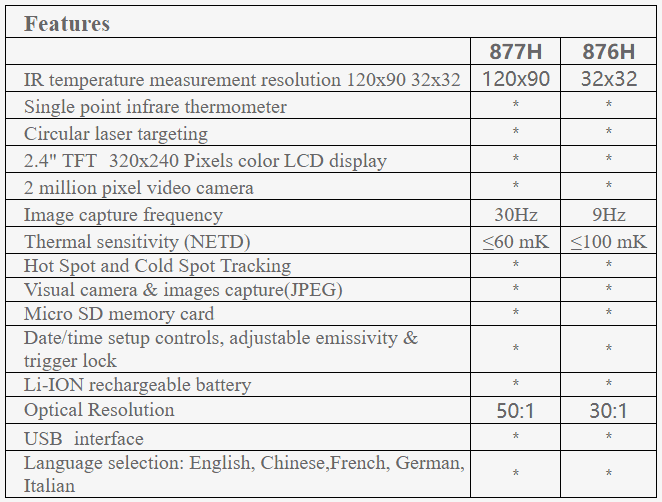

IR temperature measurement resolution: 32x32

Image capture frequency: 9Hz

Thermal sensitivity(NETD): ≤100 mK

Optical Resolution: 30:1

Imaging and optical data

Object temperature range: -20°C to 600°C (-4°F to 1112°F)

Basic accuracy: ±2°C (±3.6°F) or ±2% of reading

Field of View: 33° x 33°

Color palettes: GREY/GREY IRON/ IRON/RAINBOW

Detector data

Detector type: Uncooled hyper-thin pyroelectric ceramic

Single point infrared thermometer

Temperature range: -50°C to 600°C (-58°F to 1112°F)

D:S: 30:1

Basic accuracy: ±1°C (±1.8°F) or ±1% of reading

Response Time: Less than 150ms

Emissivity adjustable: 0.10~1.0 Adjustable

Micro SD memory card: MAX. support 8GB

Image storage format: Standard JPEG, including measurement data, on memory card > 1000

pictures

Language selection: English, Chinese,French, German, Italian

Weight: 410g

Size(HxWxD): 210mm x 60mm x 123mm

Accessories: 3.7V Li battery, USB cable, Carrying case and Gift box
