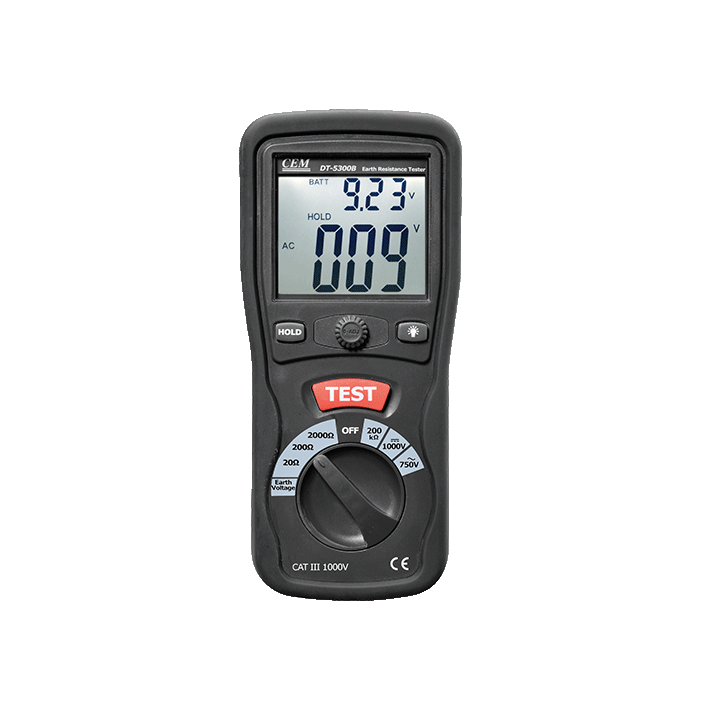

CEM DT-5300B Earth Ground Resistance Testers (1000Ω, AC-750V, DC-1000V)

Function: Range ; Max Resolution ; Accuracy

Earth resistance

10Ω ; 0.01Ω ; ±2%rdg ±0.1Ω

100Ω ; 0.1Ω ; ±2%rdg ±3dgts

1000Ω ; 1Ω ; ±2%rdg ±3dgts

Voltage AC: 750V1V±1.2%rdg ±10dgts

Voltage DC: 1000V1V±0.8%rdg ±3dgts

Resistance: 200kΩ0.1kΩ±1.0%rdg ±2dgts

Continuity Test: Active Sound Level: ≤40Ω, Test current ≤200mA

Operating Temp: 0ºC~40ºC (<80%R.H.)

Storage Temp: -10ºC~60ºC (<70%R.H.)

Power Source: 1.5V “AA” battery x 6

Size(HxWxD): 200mm x 92mm x 50mm

Weight: 582g

Accessories:

Test leads and “AA” Battery x 6, Rubber holster, 4-wire cable and iron rod x 2, gift box with carrying case.
